Expansion board for Microchip PIC32 Starter Kits
Expansion board for Microchip PIC32 Starter Kits
link
(PIC32 Starter kits not included)
2.54mm receptacle mate with SSD1963 EVK
link
for 4.3" to 7" TFT
VS1003B
MP3 codec IC with stereo out, line in, and MIC in all onboard
Footprint for WiFi module
link
(WiFi module MRF24WB0MA/B is not included)
MicroSD card socket
Debug port via
CP2102
USB to UART bridge
25LC256 SPI EEPROM for storage of web pages and calibration data
2x22 2.00mm receptacle for expansion
Product combinations
WiFi + PIC32GP Starter kit + IR module + SSD1963 EVK
WiFi + PIC32USB Starter Kit
Document & Software
Doc 01
Schematics (Rev 2011_07_25)
98 KB
Doc 02
User Guide (Rev 2011_07_26)
3,444 KB
Doc 03
Firmware (Rev 2011_10_10)
18,174 KB
Doc 04
The first demo program
(Document & firmware on User Guide)
Doc 05
TCP/IP demo using wireless network
(Document & firmware on User Guide)
Doc 06
Interfacing SSD1963
(Document & firmware on User Guide)
Doc 07
Port to Microchip Graphics Library v3.0.1
Primitive Layer Demo with SSD1963
Doc 08
Port to Microchip Graphics Library v3.0.1
Object Layer Demo with SSD1963
Doc 09
Interfacing the VS1003B MP3 codec chip (pending)
Doc 10
Display JPEG/BMP pictures from microSD (Use SSD1963 with MCHP Graphics v2.00)
link
Doc 11
Porting the MultiApp demo for SSD1963 (lUse SSD1963 with MCHP Graphics v2.00)
link
Ordering
Item description
PIC32-SSD1963 Multimedia Evaluation Kit
Part number
PIC32SK-MMEVK-R1A
Price
US$69.00
Ordering method
Freight charge
US$10 for registered air parcel for all countries
*Standard shipping method is registered air parcel
Shipping time varies from 2-4 weeks
email
us for a manual invoice if faster service by EMS req.
Related items
Evaluation kit for Solomon SSD1963
link
Universal Learning Remote Controller
link
News
This board will be replaced by a new version with SSD1963
display controller onboard! No more clumsy headers.
Just plug in your PIC32 starter kit and get demo running.

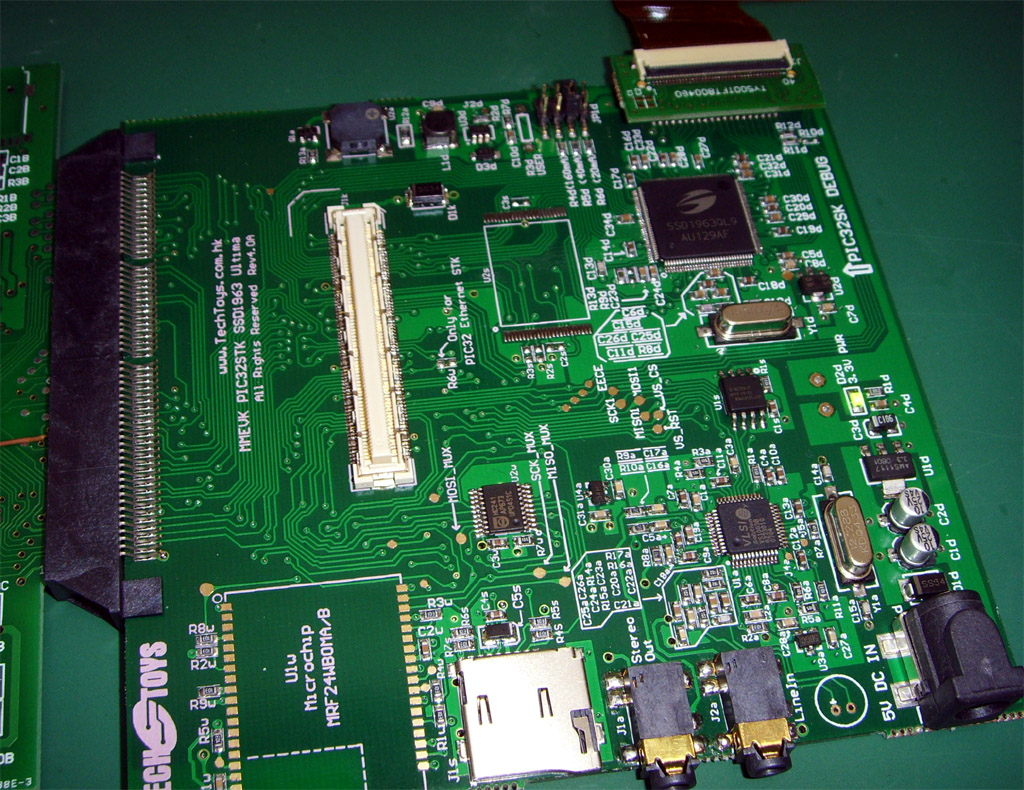

Preview1

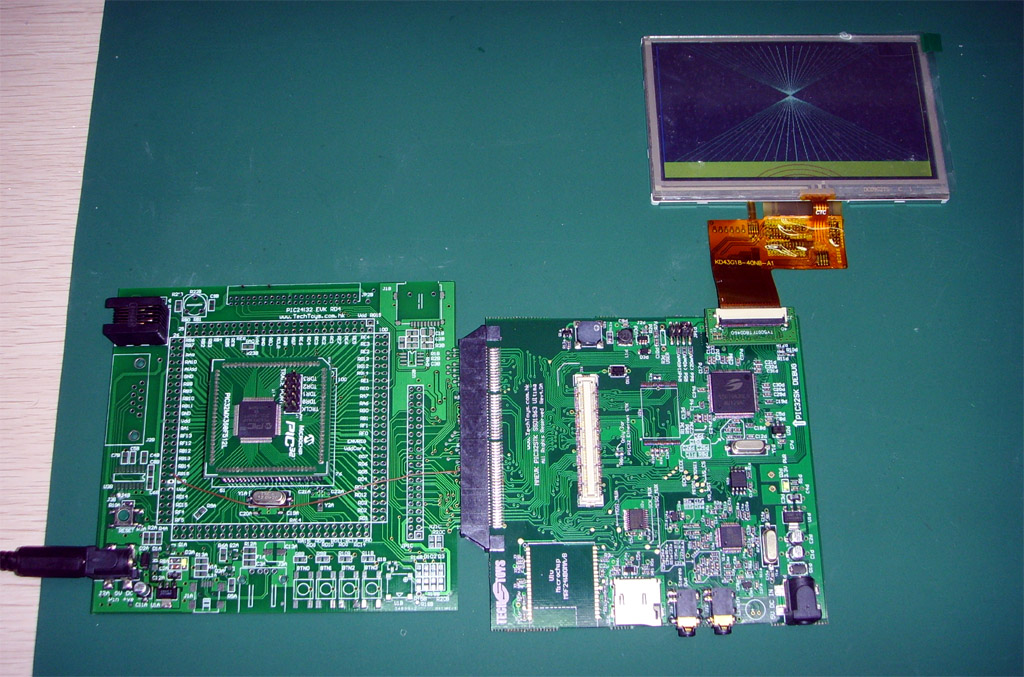

Preview2
