Evaluation kit for Solomon SSD1963 Display Controller

Evaluation kit for Solomon SSD1963 Display Controller

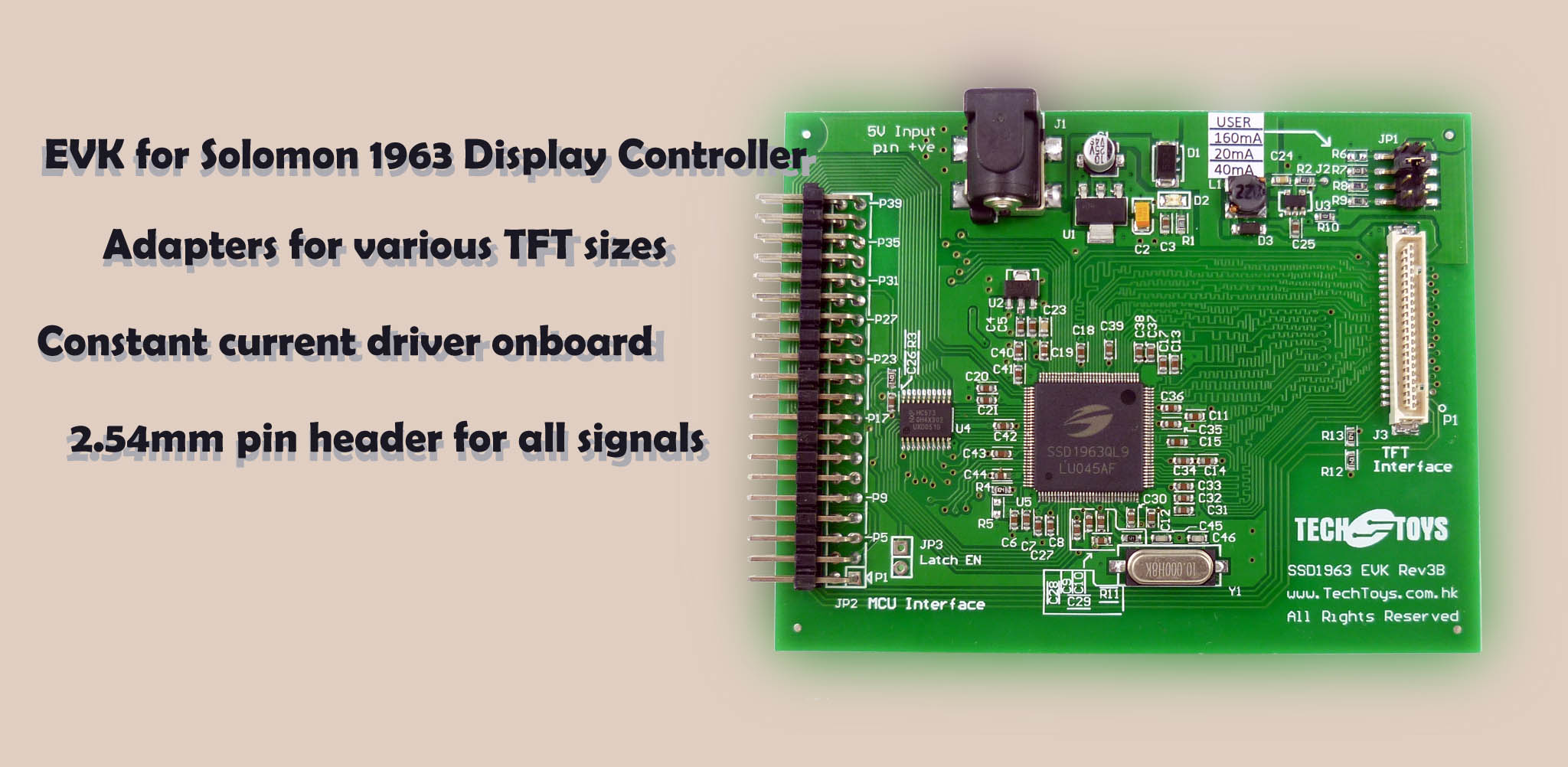

22V high current boost LED driver with user selectable bias current
Easy access of control signal and data bus via 2.54mm pin header
74HC573D latch device for low-pin-count microcontrollers
Example programs in Microchip Graphics Library version 2.00 available
40 pieces solderless jumper cables free for your own MCU board guide


Adapter for 4.3" TFT link

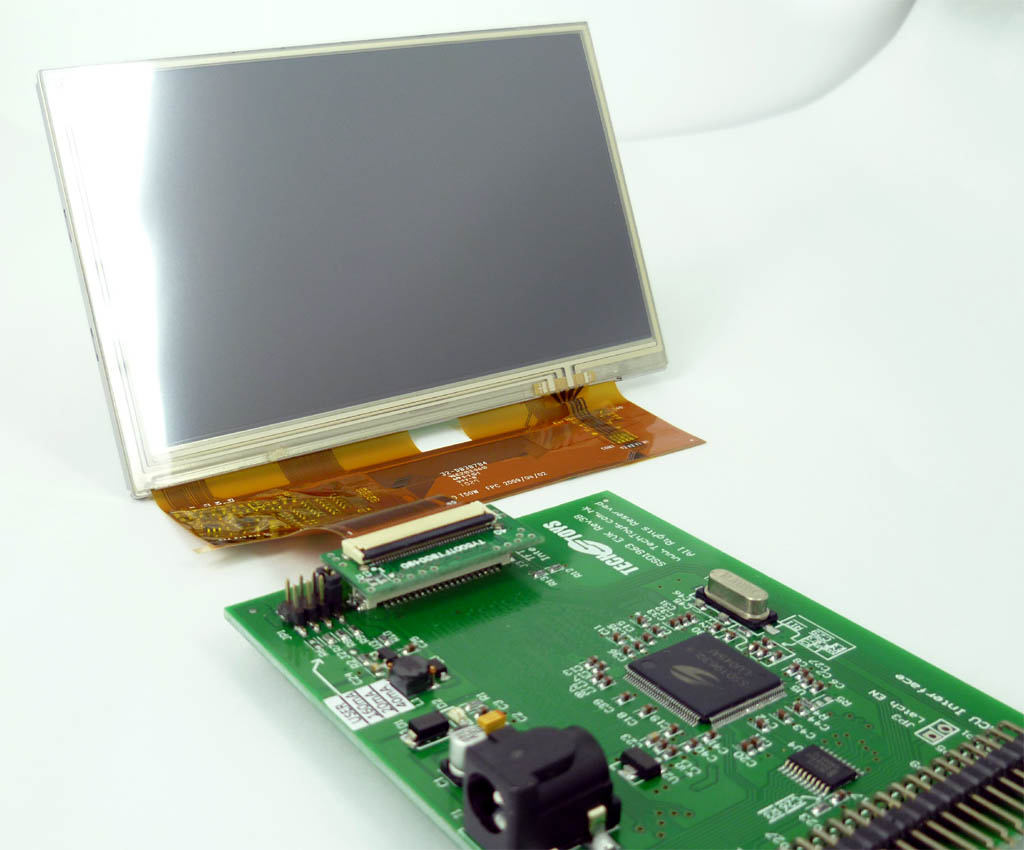

Adapter for 5" TFT link

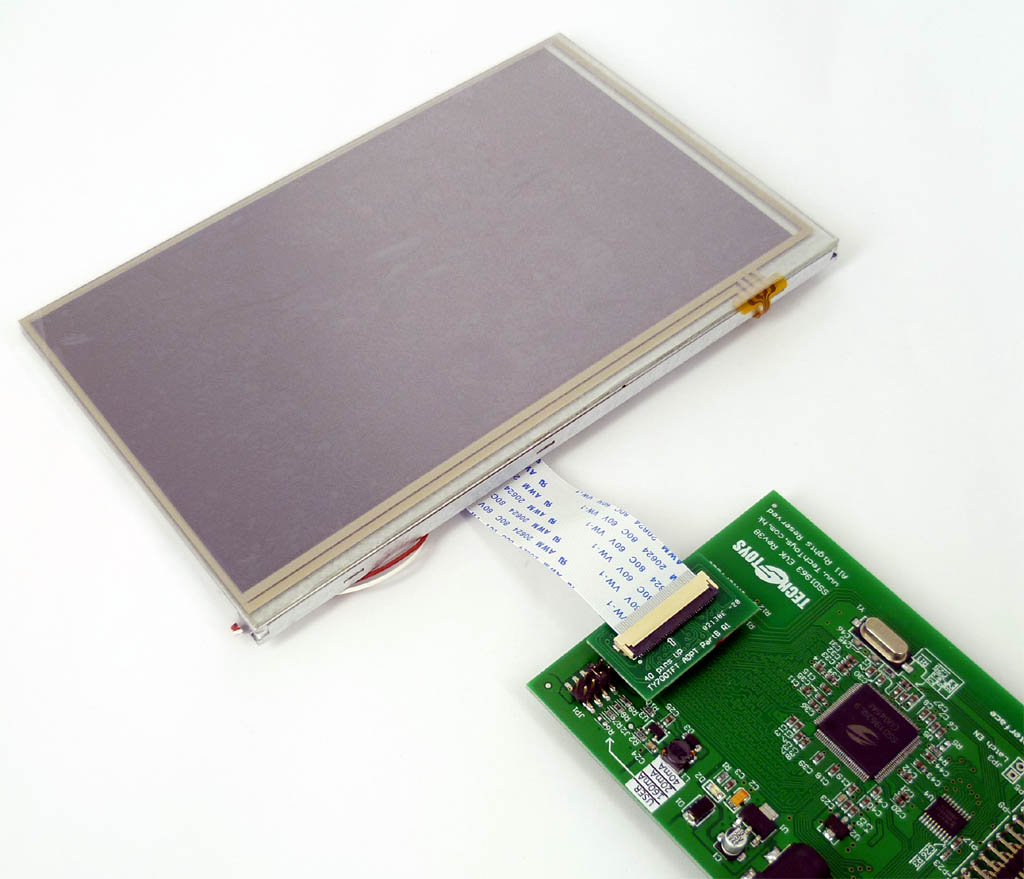

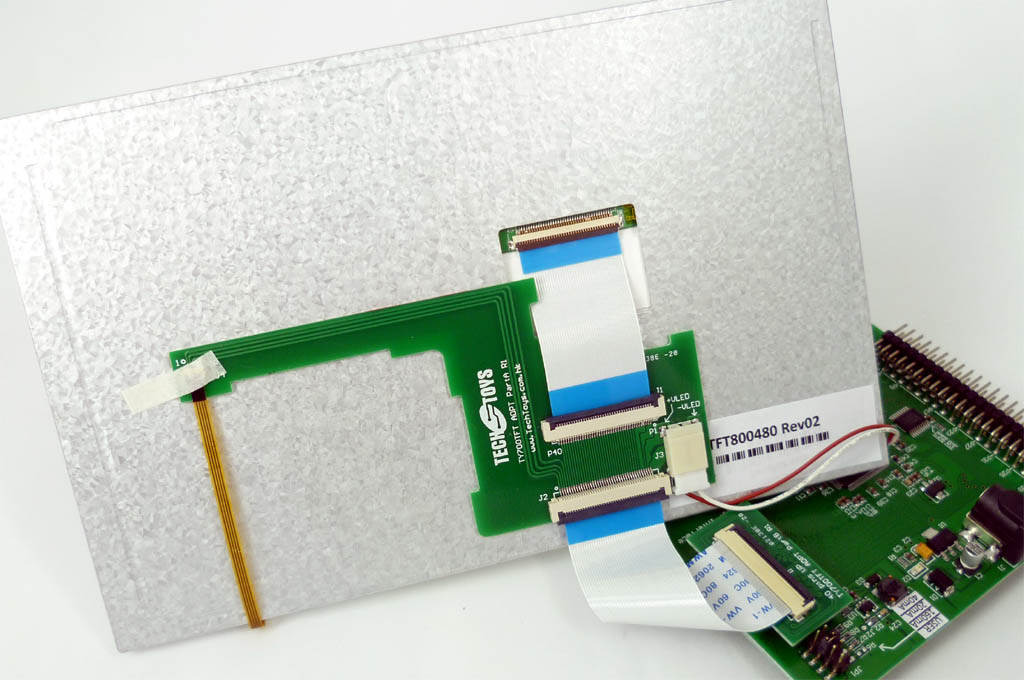

Adapter for 7" TFT picture1 picture2
Universal adapter kit for your own TFT (soldering required) link

Remarks: individual adapter for 4.3", 5", and 7" TFT will be included at no
additional cost with bundle purchase of the respective panels.




Document & Software


Doc 01 Schematic 41 KB


Doc 02 User's Guide 1,800 KB
Doc 03 Data sheet of SSD1963 Rev1.1 957 KB
Doc 04 Original Application Note from Solomon 522 KB
Doc 05 Graphics MultiApp Demo
(Microchip Graphics Library v2.00)		 2,638 KB
Doc 06 Display JPEG/BMP images from SD (Microchip Graphics Library v2.00) 2,562 KB
Doc 07 Primitive Low Level Driver 60 KB
Doc 08 Port to Microchip Graphics Library (v3.01)   link

  NOW available
  Host board for Microchip PIC32 Starter Kit   link




Ordering

Item description Evaluation kit for Solomon SSD1963 Display Controller
Part number SSD1963 EVK Rev3B
Price HK$460.00 (US$59.00)

Freight charge US$10 for registered air parcel for all countries
  *Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS required

Order options Evaluation kit for Solomon SSD1963 Display Controller
  Part #: SSD1963EVK-R3B
  Price : US$59.00


  Bundle SSD1963EVK-R3B + 4.3" WQVGA color TFT with Touch panel
  Part #: SSD1963EVK-R3B-TY430TFT Rev04
  Price : US$99.00

  Bundle SSD1963EVK-R3B + 5" WVGA color TFT with Touch panel
  Part #: SSD1963EVK-R3B-TY500TFT
  Price : US$109.00

  Bundle SSD1963EVK-R3B + 7" WVGA color TFT with Touch Panel
  Part #: SSD1963EVK-R3B-TY700TFT
  Price : US$119.00

  Universal TFT Adapter Kit for SSD1963EVK-R3B
  Part# : SSD1963EVK-R3B-UTFT-ADPT
  Price : US$3.00

Optional Items Board for Microchip PIC32 Starter Kit link
  Evaluation board for Microchip 100-Pin General Purpose MCU link
  4.3" WQVGA color TFT-LCD module with Touch Panel link
  5" WVGA color TFT-LCD module with Touch Panel link
  7" WVGA 262k color TFT-LCD module with Touch Panel link
  SSD1963QL9 Display Controller in LQFP-128 package link
  Jumper cables for 2.54mm pin headers, pack of 20 pieces link
