Evaluation Board for Microchip 100-Pin General Purpose MCU

Evaluation platform for Microchip 100-Pin General Purpose Microcontrollers
Microchip ICD2/3 compatible
PICkit 2/3 programmer compatible

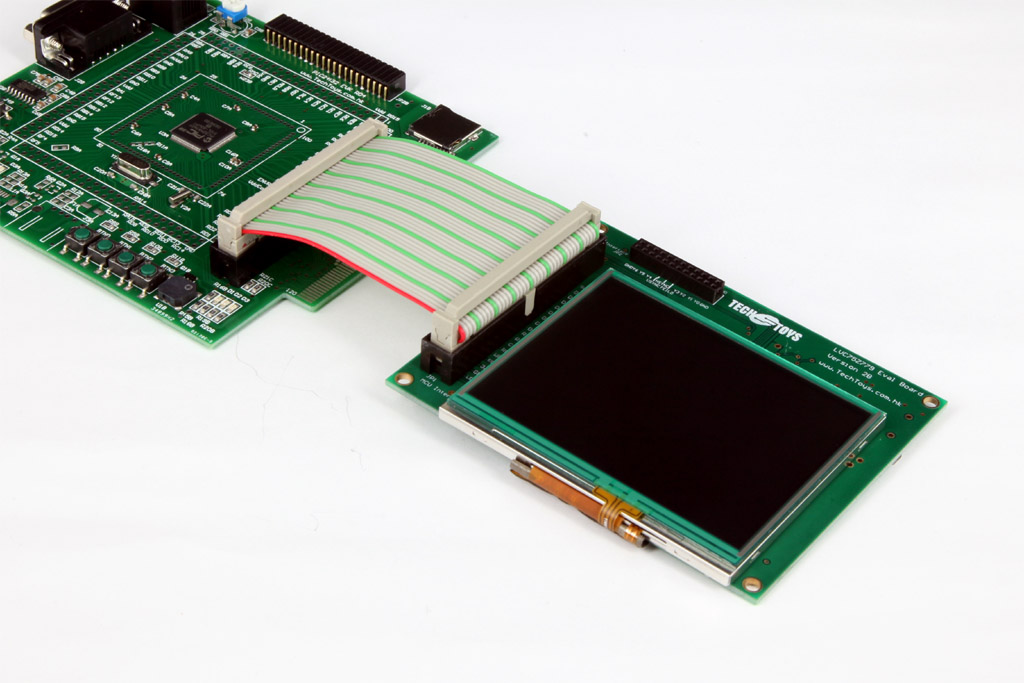

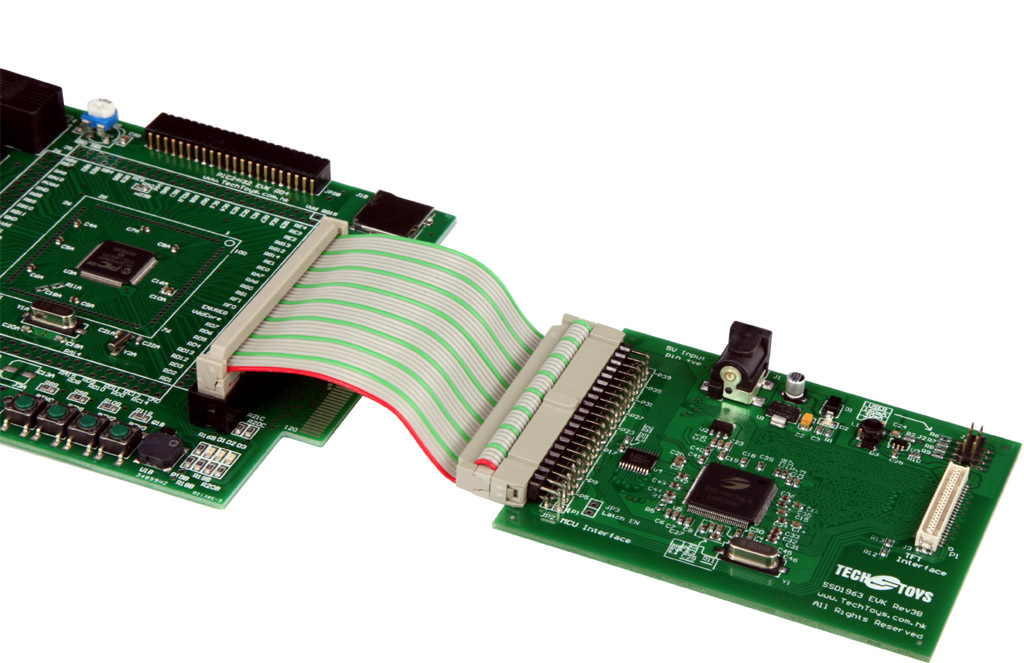

Onboard header for TFT color LCD modules SSD1963EVK SSD1928EVK
microSD Card socket
UART interface via SIPEX SP3232
Atmel AT25128AN SPI EEPROM for storage of calibration data
Buzzer, LED, trimmer, and tact switches
2x22 2.00mm receptacle for expansion
FR4 1.6mm PCB of 124x110mm







Document & Software

Doc 01

 Schematic (4 pages)

96 KB


Doc 02 User's Guide
Doc 03 Firmware (Rev 2011_09_23) 17,345 KB
Doc 04 Low level driver for SSD1963 controller
Doc 05 Port to Microchip Graphics Library v3.0.1
Primitive Layer Demo with SSD1963
Doc 06 Port to Microchip Graphics Library v3.0.1
Object Layer Demo with SSD1963
Doc 07 Decode and display jpeg/bmp images from SD Card (SSD1963 EVK board req.)
(Based on Microchip Graphics Library 2.00)		 2,562 KB
Doc 08 Display life video from OV9650
(Based on Microchip Graphics Library 2.00)		 2,419 KB













  More demo programs
(hyperlink with previous version for now)		   link



Ordering

Item description Evaluation board for Microchip 100-Pin General Purpose MCU
  Click on hyperlink below for pictures or product brochures

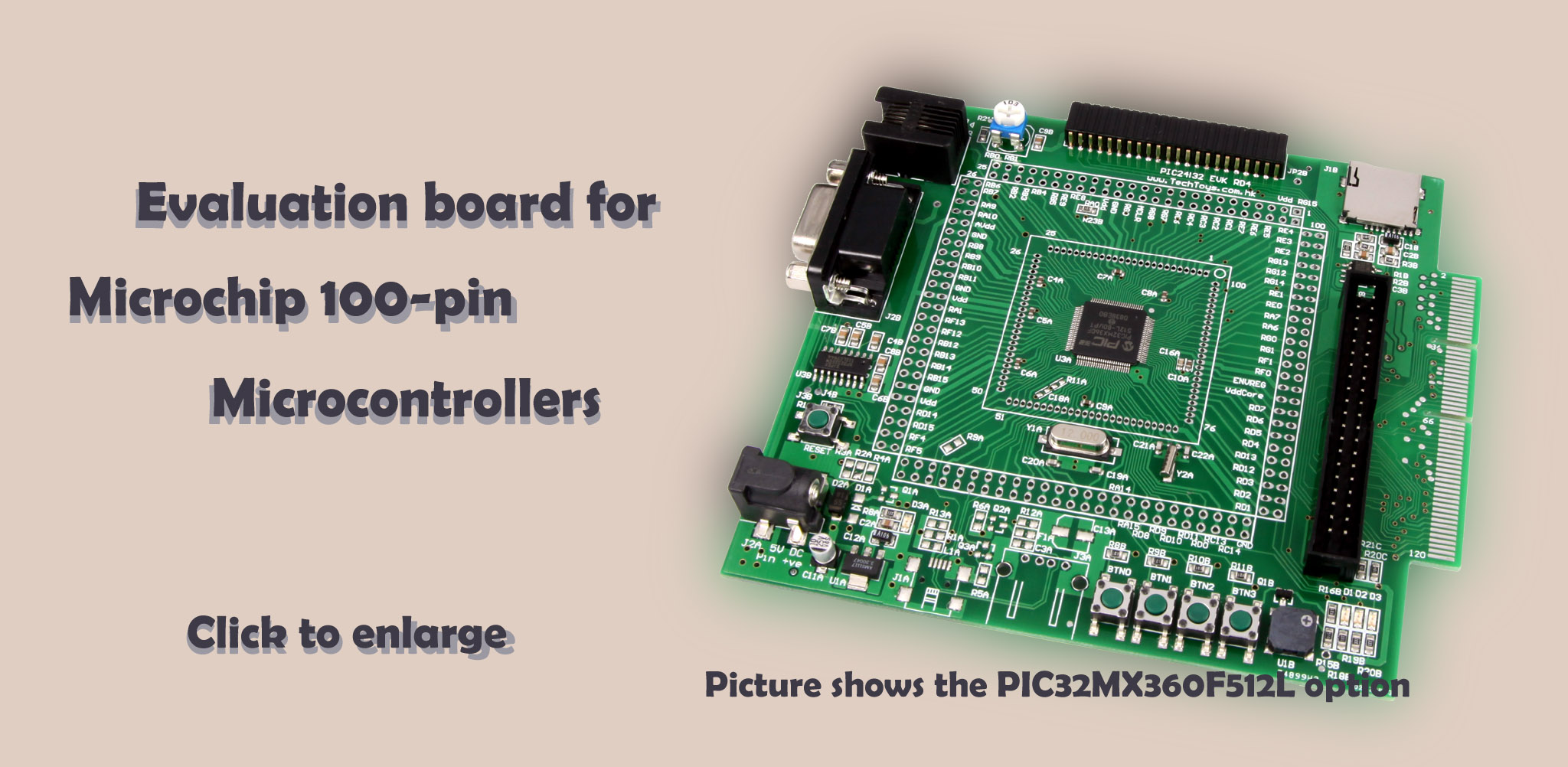

Order options PIC24/32 EVK RD4 - option PIC32MX360F512L onboard

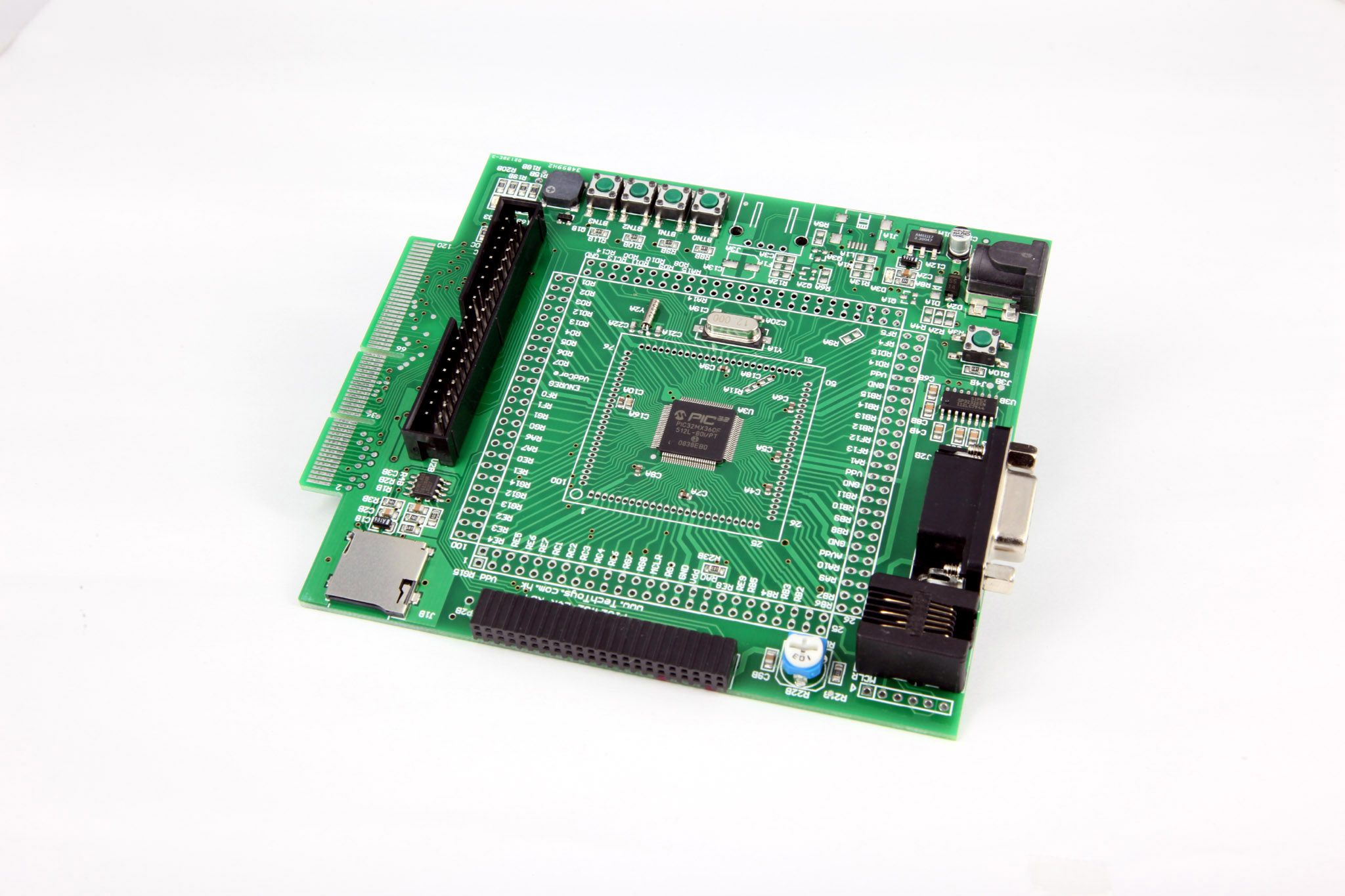

  Part #: PIC32MX360F512L-EVK-RD4
  Price : US$49.00

  PIC24/32 EVK RD4 - option PIC24FJ256GA110 onboard

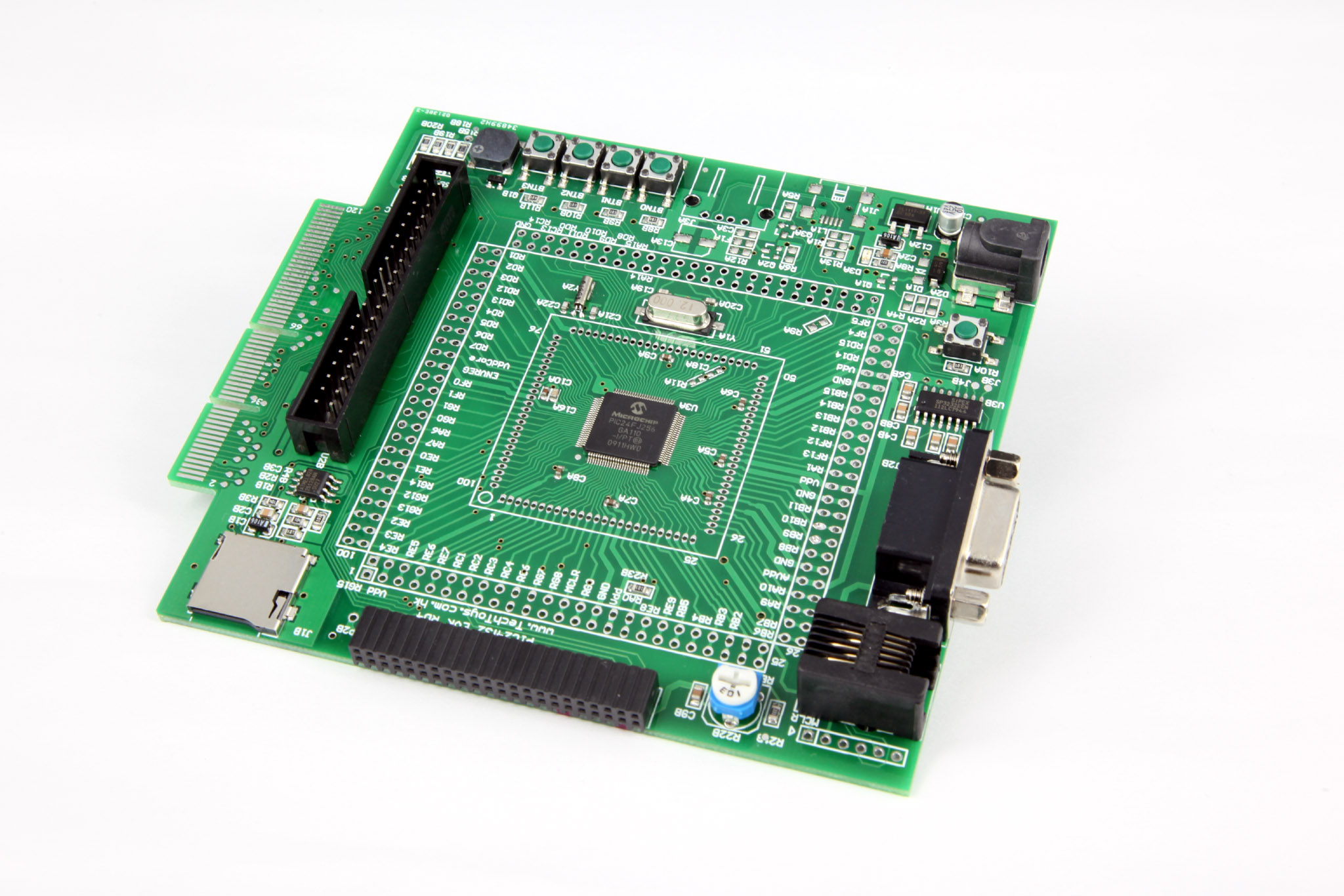

  Part # : PIC24FJ256GA110-EVK-RD4
  Price : US$45.00



Freight charge US$6 for registered air parcel
  email us to order if you want to ship by EMS SpeedPost

Related items 2.8" 262k color LCD with Touch Panel integrated link
  3.5" 16.7m color LCD with Touch Panel and SSD1928 link
  4.3" - 7" TFT color TFT evaluation kit link
  Universal Learning Remote Controller link
