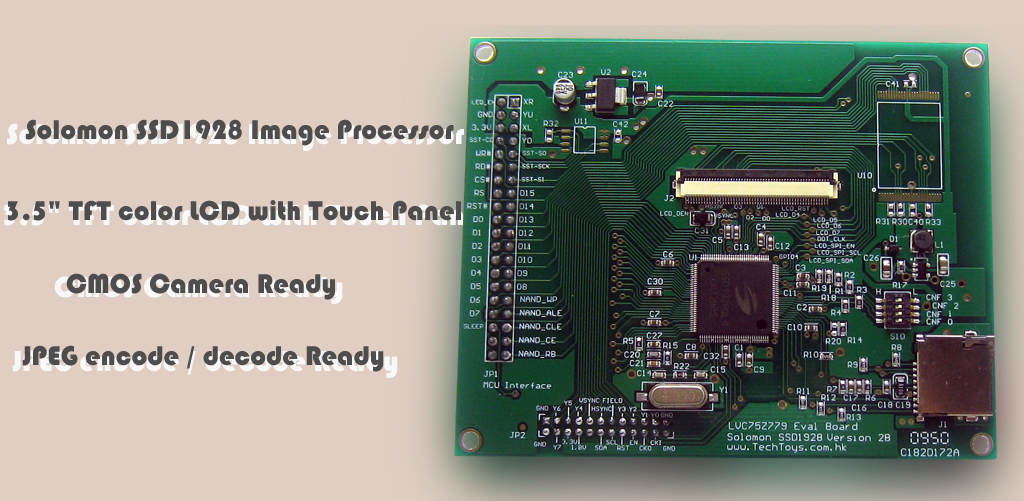

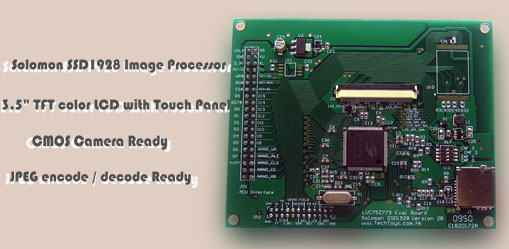

Evaluation kit for Solomon SSD1928 Image Processor

Evaluation kit for Solomon SSD1928 Image Processor
Compatible with 3.5" QVGA 16.7 million color TFT-LCD module link
8-bit or 16-bit interface for microcontrollers
CMOS Camera interface
SD Card interface for jpeg images encode and decode
High voltage 20mA LED backlight driver onboard
Single 3.3V operation
Easy access of control signal and data bus via 2.54mm header
Standard 2.00mm header for CMOS camera connection
CD-ROM supplied for critical datasheet









Document & Software


Doc 01 Schematic (Rev 2B) 41 KB


Doc 02 Data sheet of LCD module link











  Archive of Version 1E link

Ordering

Item description Evaluation kit for Solomon SSD1928 Image Processor
Part number SSD1928 EVAL Rev.2B
Price HK$382.00 (US$49.00)*
  *3.5" TFT color LCD module not included with this price
Freight charge US$6 for registered air parcel** for all countries
  **Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS required
Ordering method

Optional Items 3.5" QVGA color TFT-LCD module with Touch Panel link
  OmniVision OV9650 1.3MPixel Color CMOS Camera link
  Development board for PIC18LF4550 link
  Development board for PIC24/PIC32 series link
  SSD1928QL9 Image Processor link
