PIC18LF4550 for USB applications w/ 262k Color LCD module

Microchip PIC18LF4550 in TQFP44 lead package
Crystal frequency of 20MHz
2.54mm header directly compatible with our TFT color LCD modules
USB 2.0 Full Speed : compatible with Microchip FDFSUSB Windows application
USB Mass Storage Device with SD card : compatible with Microchip AN1003
5-way navigator joystick wired to RB4-7 for interrupt-on-change experiment

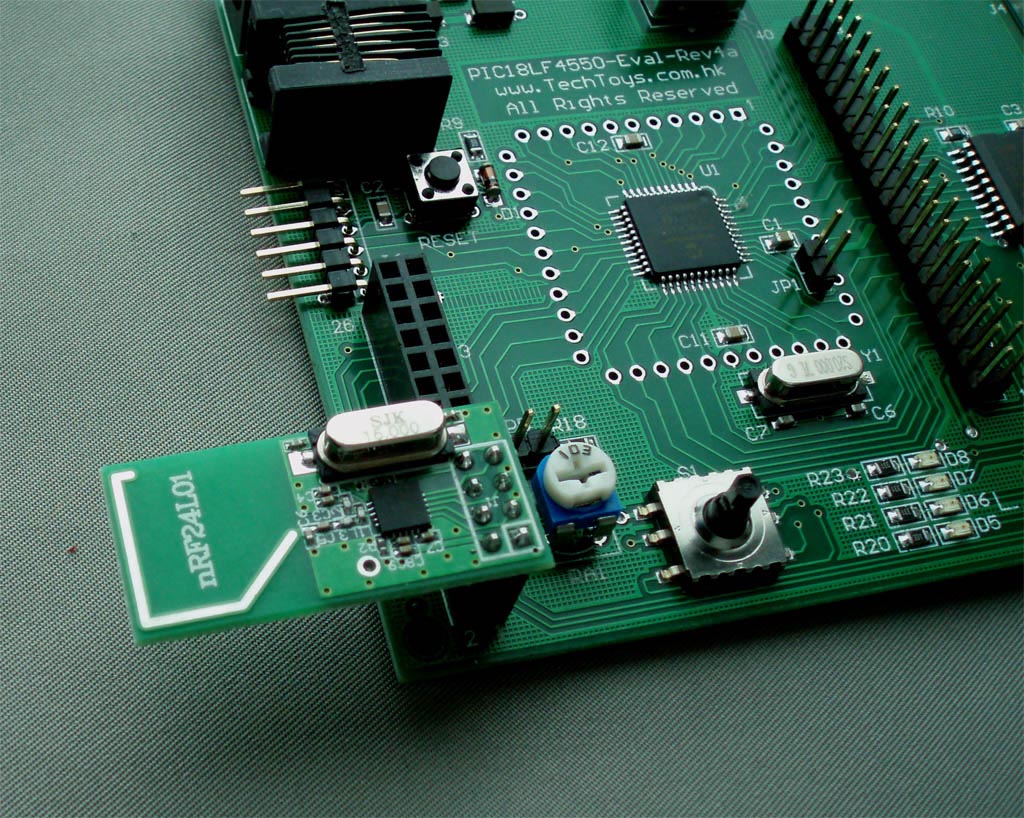

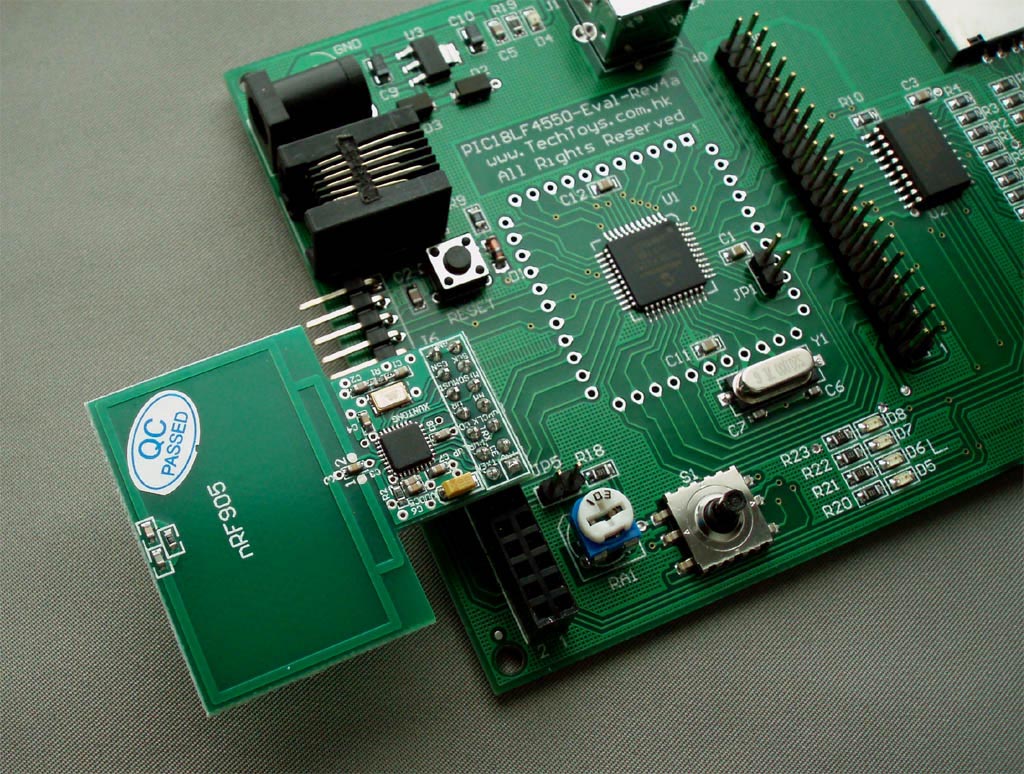

Extension port compatible with nRF905 & nRF24L01 wireless modules
Extension port compatible with SHT1X_BO temperature & humidity sensor
10k trimmer for ADC experiment
Latch device 74HC573D for port extension
2.54mm header for all 44 mcu pins for logic analyzer or DSO probe
Microchip ICD2 compatible
Microchip PICKit2 compatible
Accept 5V-7.5V (max.) external power supply or USB power
PCB: FR-4, 1.6mm, size: 135x89mm


Document & Software


Doc 01

Schematic (Rev 4a)

 40KB


Doc 02 A high-resolution picture 211KB
Doc 03 User Guide (version 08092008) 1280 KB
Doc 04 Hello World - Blink LED 17KB
Doc 05 Driver for 2.4" TFT 262k color LCD 176KB
Doc 06 Driver for 3.2" TFT 262k color LCD 170KB
Doc 07 Joystick demo with 2.4" 262k TFT LCD 171KB
Doc 08 Joystick demo with 3.2" 262k TFT LCD 165KB
Doc 09 Display SHT10 sensor data on 2.4" TFT 168KB
Doc 10 Display SHT10 sensor data on 3.2" TFT 185KB
Doc 11 USB Mass Storage application 852KB
Doc 12 Driver for 2.8" TFT 262k color LCD 125 KB
Doc 13

Driver for 3.5" TFT color LCD &
CMOS Camera OV9650 (ver. 19012009)

 204 KB
  Projects require MPLAB 8.02 or higher
  Installation path of author at D:\mcc18


Please change this path according to your


  development environment

Ordering

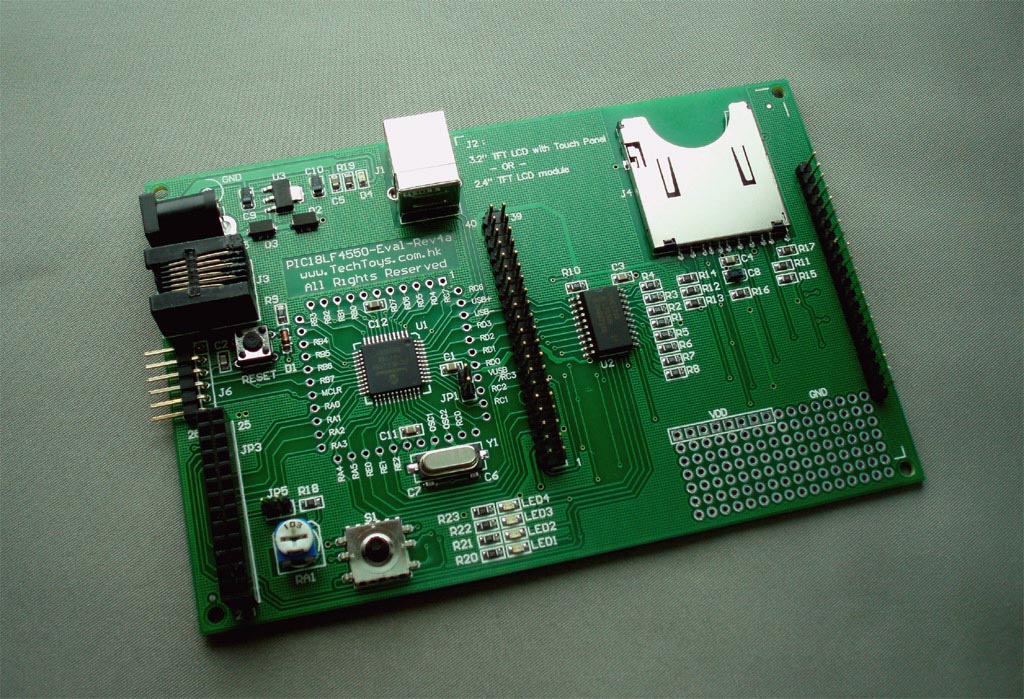

Item description Development board for PIC18LF4550 (picture)
Part number PIC18LF4550-Eval-Rev 4A
Price HK$304.00
  US$39.00
  This price doesn't include LCD, wireless module, nor SHT10
Freight charge US$6 for registered air parcel
Ordering method*
  email us to order if you want to ship by EMS SpeedPost

Optional items 2.4" 262k Color LCD module with PCB (link)
  2.8" 262k Color LCD module with Touch Panel (link)
  3.5" 16.7m Color LCD module with Touch Panel (link)
  1.3MPixel CMOS Camera (require 3.5" TFT LCD module link)
  SHT10 sensor (link)
  Nordic nRF905 433MHz wireless module (link)
  Nordic nRF24L01 2.4GHz wireless module (link)
