OmniVision OV9650 1.3MPixel color CMOS Camera Module

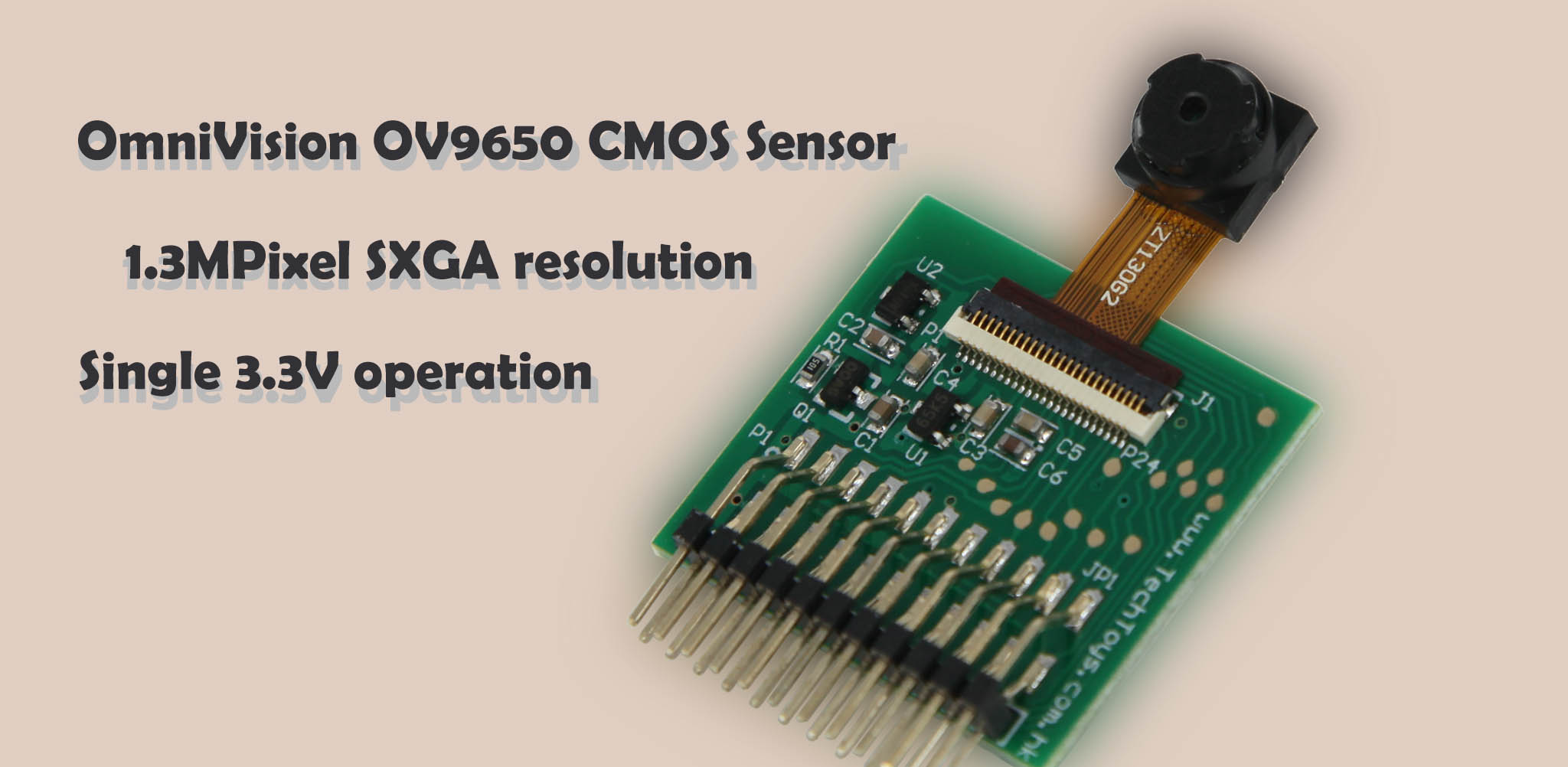

OmniVision OV9650 Color CMOS SXGA 1.3MegaPixel CAMERACHIP
Single-chip SXGA resolution up to 1280x1024 pixels
Breakout board compatible with 3.5" TFT color LCD module for life video link
Onboard 2.5V LDO regulator
2.00mm header for prototype









Document & Software


Doc 01 OV9650 Product Brief 178 KB


Doc 02 OV9650 Register Set 789 KB
Doc 03 Schematic 17 KB
Doc 04 TGA130V10 CMOS camera
(replaced by 5420_00B for better lens)		 45 KB
Doc 05 Development Board (Doc 05 for demo)   link
Doc 06 Interface OV96xx camera with Freescale 287 KB
Doc 07 BT.601 on Wiki 23 KB
Doc 08 BT.656 on Wiki 23 KB
Doc 09 5420_00B CMOS camera module 99 KB


Ordering

Item description OmniVision OV9650 1.3MPixel color CMOS Camera Module
Part number TGA130V10_BO
Price US$19.90
  HK$155.00
Freight charge US$6.00 for registered air parcel
