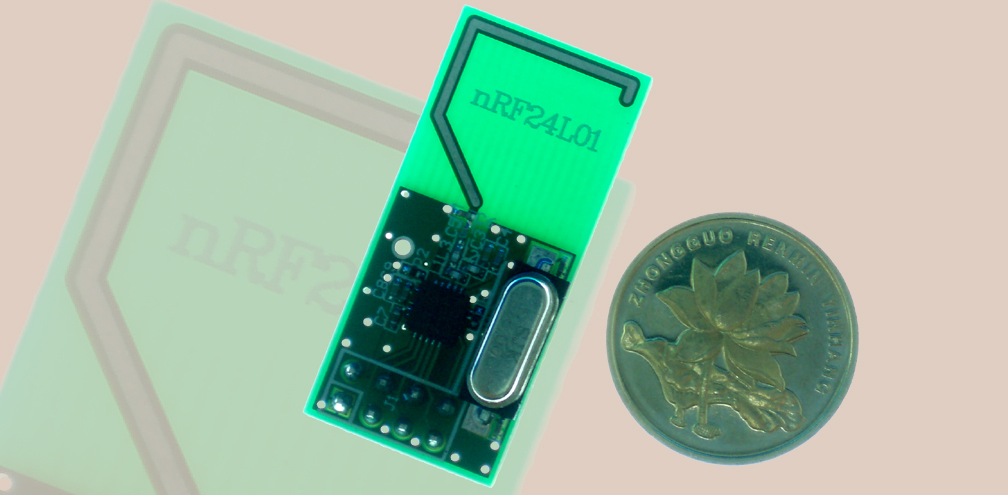

Nordic nRF24L01 2.4GHz wireless module

A complete RF module for testing Nordic nRF24L01+
Worldwide 2.4GHz ISM band operation
Communication range around 20m in open space
SPI interface to microcontrollers such as PIC, 8051, ARM
Operating voltage ranges from 1.9 to 3.6V
Multi-channel operation with switching time <130us
Adjustable output power up to 0dBm
Transmission power rating 7mA@-18dBm; 11mA@0dBm
Current rating in receive mode @ 12.5mA, power down current @ 0.4uA
Sensitivity of -85dBm at a baud rate of 1000kbps
Automatic CRC generation; no software required for mcu
Double-side FR-4 1.6mm PCB follow strictly the layout recommendations for 34x16mm PCB antenna provided by Nordic Semiconductor
Further information on Nordic web site link

Document & Software

Doc 01

Data Sheet

191 KB


Doc 02 nR24L01+ data sheet link
Doc 02 Evaluation board for PIC16F690 link
Doc 03 Evaluation board for NXP LPC2103 link
Doc 04 Evaluation board for PIC18LF4550 link


Item description Nordic nRF24L01 wireless module
Part number nRF24L01_MOD
Price HK$140.00
Freight charge US$6 for registered air parcel
  email us to order if you want to ship by EMS SpeedPost
