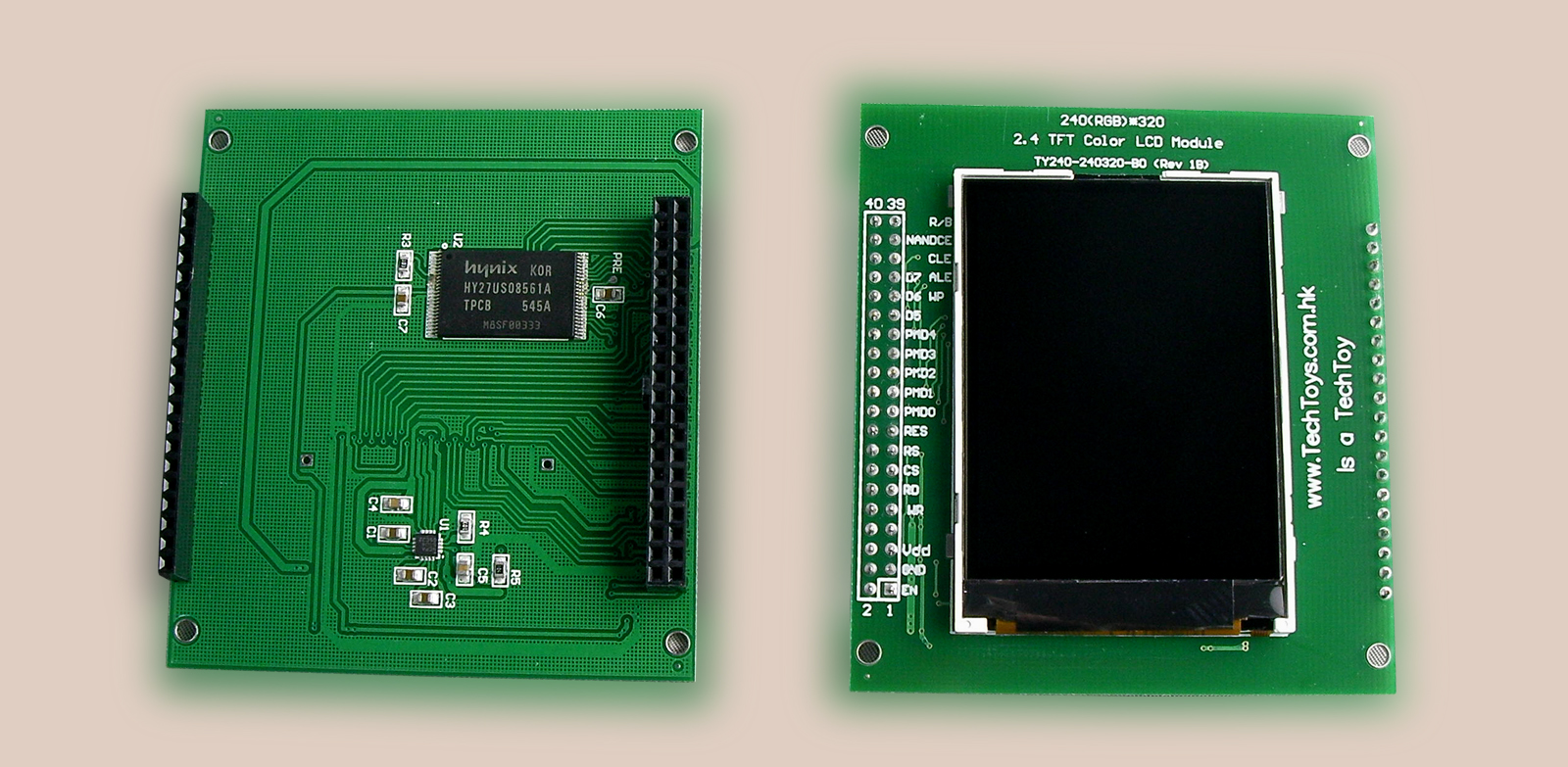

2.4" 262k TFT Color LCD module on PCB

2.4" QVGA 262k TFT-LCD module
240*RGB*320 pixels
8-bit parallel bus interface
LCD driver is ILI9320 link
2.7-3.3V operating voltage
NCP5604A constant current DC-DC LED driver for backlight control
Driver directly compatible with Microchip GUI library link
Include a 32MB NAND Flash download
Standard 2.54mm pin-out for prototyping





Document & Software


Doc 01 Schematic (Rev 1B) 20 KB


Doc 02 Dimension 20 KB
Doc 03 Primitive Demo for Microchip GUI library 520 KB
Doc 04 Quick Time movie for Primitive Demo 6,541 KB
Doc 05 Data sheet of the LCD module 114 KB
Doc 06 NAND FLASH DRIVER   link
Doc 07 Evaluation board for Microchip PIC24   link
Doc 08 Evaluation board for ARM NXP LPC2103   link

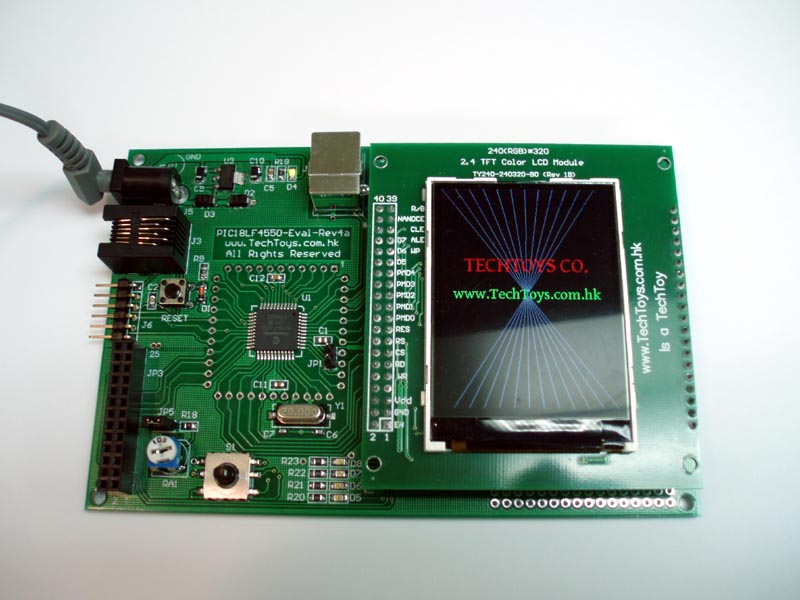

Doc 09 Port Microchip Graphics Library to PIC18LF4550 282 KB
Doc 10 Evaluation board for Microchip PIC18xxx   link



Ordering

Item description 2.4" QVGA 262K TFT-LCD on PCB with NCP5604A LED driver
Part number TY240_240320_BO (Rev 1B)
Price HK$382.00 (US$49.00)

Item description Bare LCD module w/o PCB
Part number TY240_240320
Price HK$304.00 (US$39.00)


Freight charge US$10 for registered air parcel for all countries
  Option: SpeedPost (EMS) with online tracking system
Ordering method email us to order
