Evaluation kit for Solomon SSD1963 Display Controller

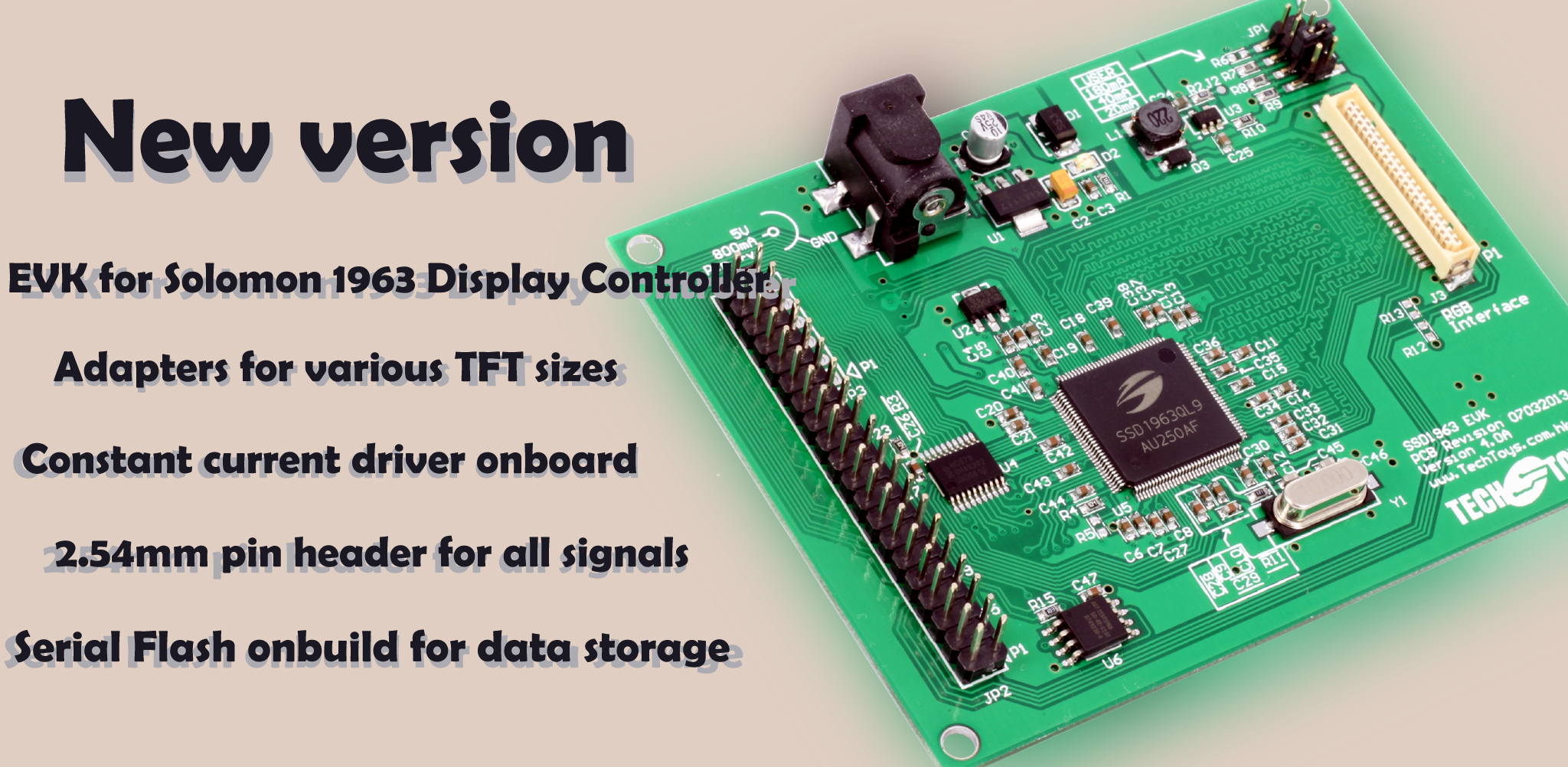

Evaluation kit for Solomon SSD1963 Display Controller
22V high current boost LED driver with user selectable bias current
Easy access of control signal and data bus via 2.54mm pin header
74HC573D latch device for low-pin-count microcontrollers
40 pieces solderless jumper cables included for your own MCU board
SPI Flash now onboard for data storage such as calibration data for TP
Four thread holes for mounting

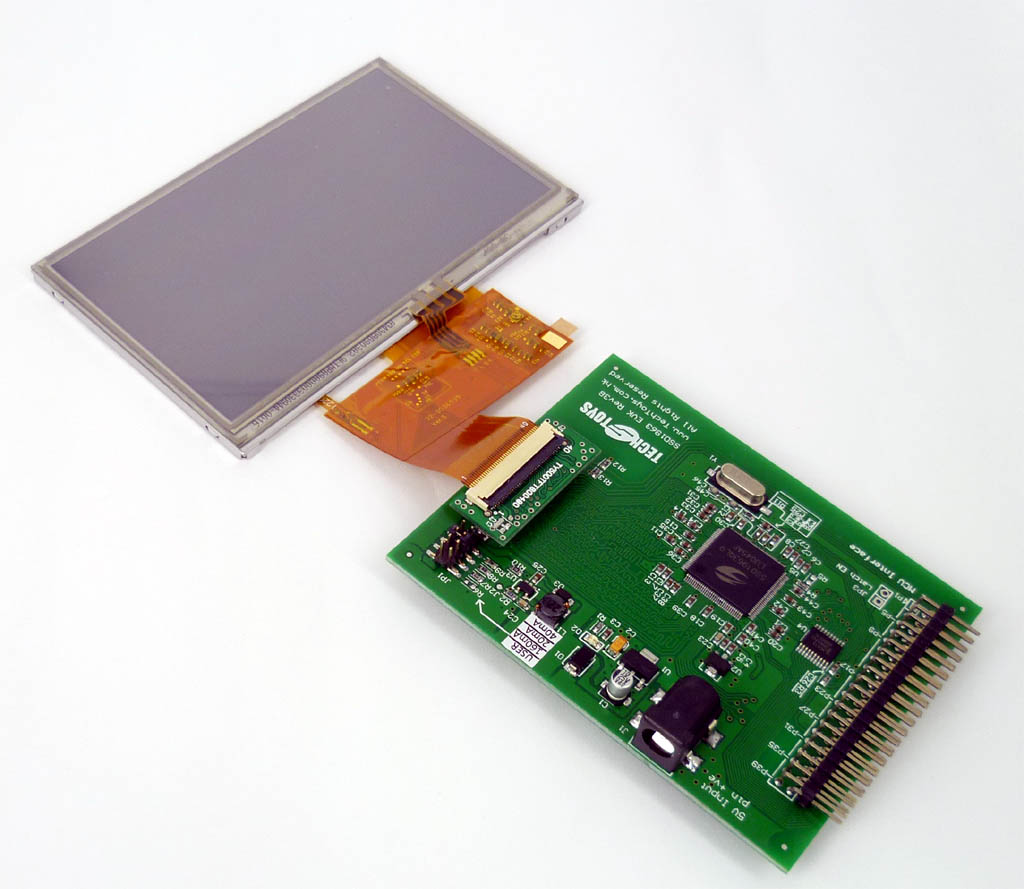

Adapter included with 4.3"/5"/7" TFT bundle offer link

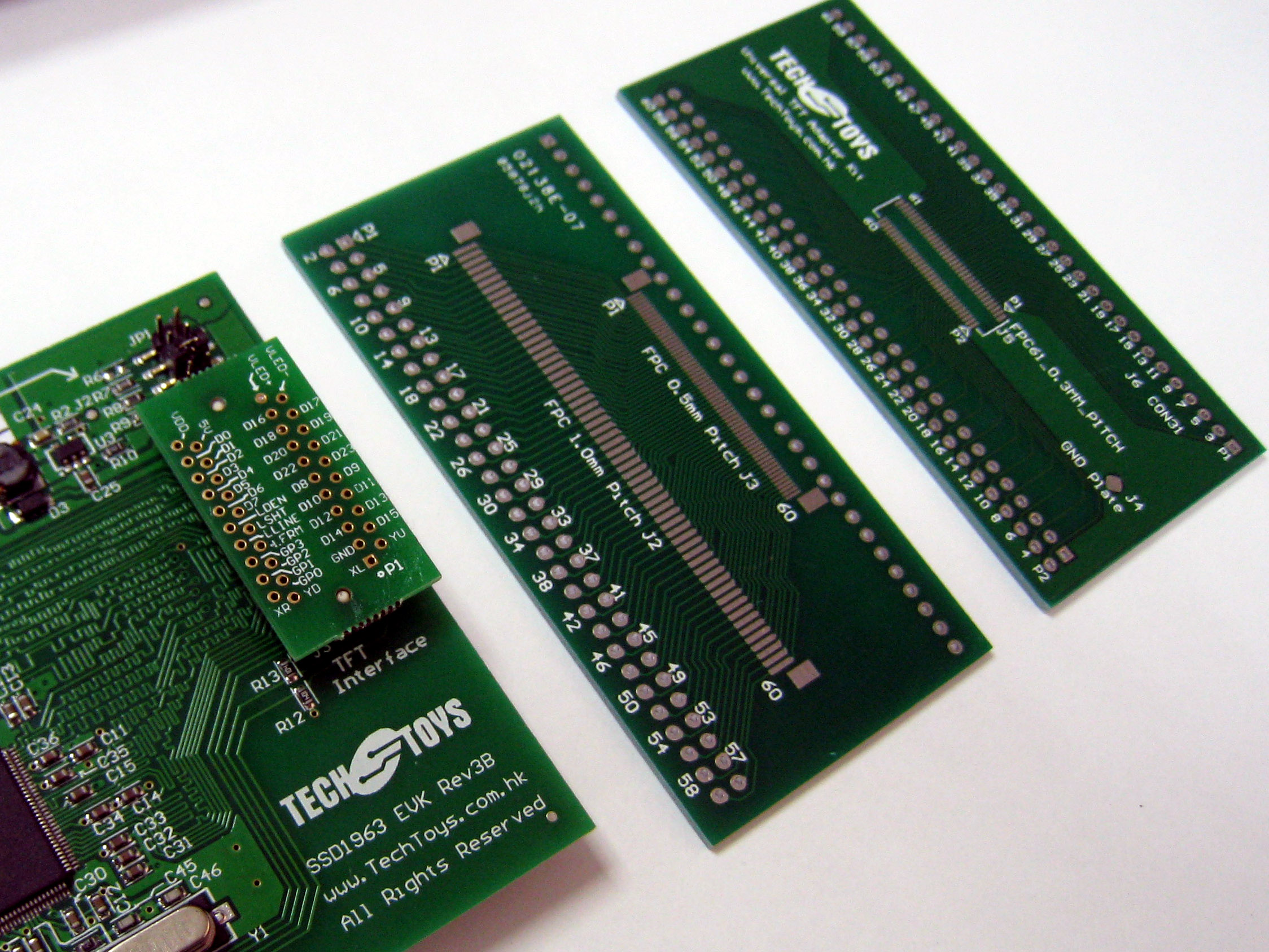

Optional Universal adapter kit for your own TFT (soldering required) link




Remarks: individual adapter for 4.3", 5", and 7" TFT will be included at no
additional cost with bundle purchase of our TFT screen.

Universal TFT Adapter Kit for SSD1963EVK is not included


Document & Software


Doc 01 Schematic PCB version 07032013 42 KB


Doc 02 User Guide 1.4 MB
Doc 03 Data sheet of SSD1963 Rev1.1 957 KB
Doc 04 Original Application Note from Solomon 522 KB
Doc 05 Graphics MultiApp Demo
(Microchip Graphics Library v2.00)		 2,638 KB
Doc 06 Display JPEG/BMP images from SD (Microchip Graphics Library v2.00) 2,562 KB
Doc 07 Primitive Low Level Driver
(update 141112)		 78 KB
Doc 08 Port to Microchip Graphics Library (v3.01)
Under Doc 04 of Ultima Version 4.1		   link
Doc 09 Schematic of TFT adapter 13 KB
Doc 10 PCB dimension 38 KB


Archive Schematic and user guide of board 1.9 MB
  Revision R3B

Ordering

Item description Evaluation kit for Solomon SSD1963 Display Controller
  PCB Revision 07032013


Freight charge Start from US$6 by registered air parcel for all countries
  *Standard shipping method is registered air parcel
  Shipping time varies from 2-4 weeks
  email us to order if a faster service by EMS required

Order options Evaluation kit for Solomon SSD1963 Display Controller
  Part #: SSD1963EVK-R4A
  Price : US$39.00

  Bundle SSD1963EVK-R4A + 4.3" WQVGA color TFT with TP
  Part #: SSD1963EVK-R4A-TY430TFT
  Price : US$59.00

  Bundle SSD1963EVK-R4A + 5" WVGA color TFT with TP
  Part #: SSD1963EVK-R4A-TY500TFT
  Price : US$69.00

  Bundle SSD1963EVK-R4A + 7" WVGA color TFT (no Touch Panel)
  Part #: SSD1963EVK-R4ATY700TFT
  Price : US$69.00

  Universal TFT Adapter Kit for SSD1963EVK
  Part# : SSD1963EVK-UTFT-ADPT
  Price : US$4.00
(This item is not for individual sale.
Only purchase with SSD1963EVK allowed)

Optional Items 4.3" WQVGA color TFT-LCD module with Touch Panel link
  5" WVGA color TFT-LCD module with Touch Panel link
  7" WVGA 16million color TFT-LCD module with Touch Panel link
  SSD1963QL9 Display Controller in LQFP-128 package link
  Jumper cables for 2.54mm pin headers, pack of 20 pieces link
