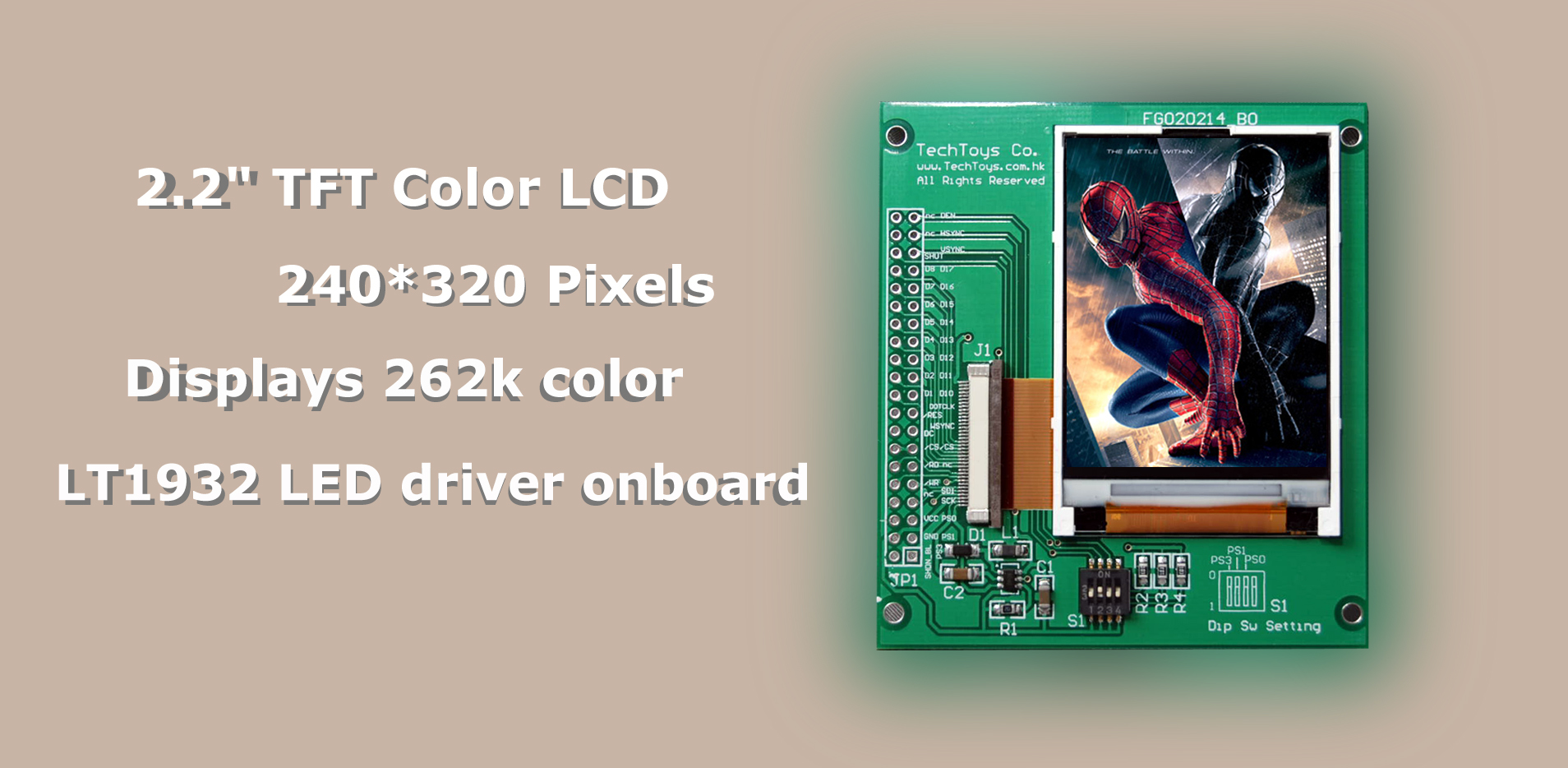

2.2" 262k TFT Color LCD module on PCB
2.2" low-power consumption 262k color LCD module
240*RGB*320 pixels
8-bit or 16-bit parallel bus interface with dip switch selection
LCD driver is Solomon SSD1289
link
2.6-3.3V operating voltage
LT1932 constant current DC-DC LED driver for backlight control
Standard 2.54mm pin-out for prototyping
Document & Software
Doc 01
Schematic
9KB
Doc 02
Dimension
19KB
Doc 03
Demonstration program for PIC18 v1.0b in Microchip C18 compiler
77KB
Doc 04
Catalyst CAT32 DC-DC converter
193KB
Doc 05
New series of TFT display in mobile applications
95.4KB
Doc 06

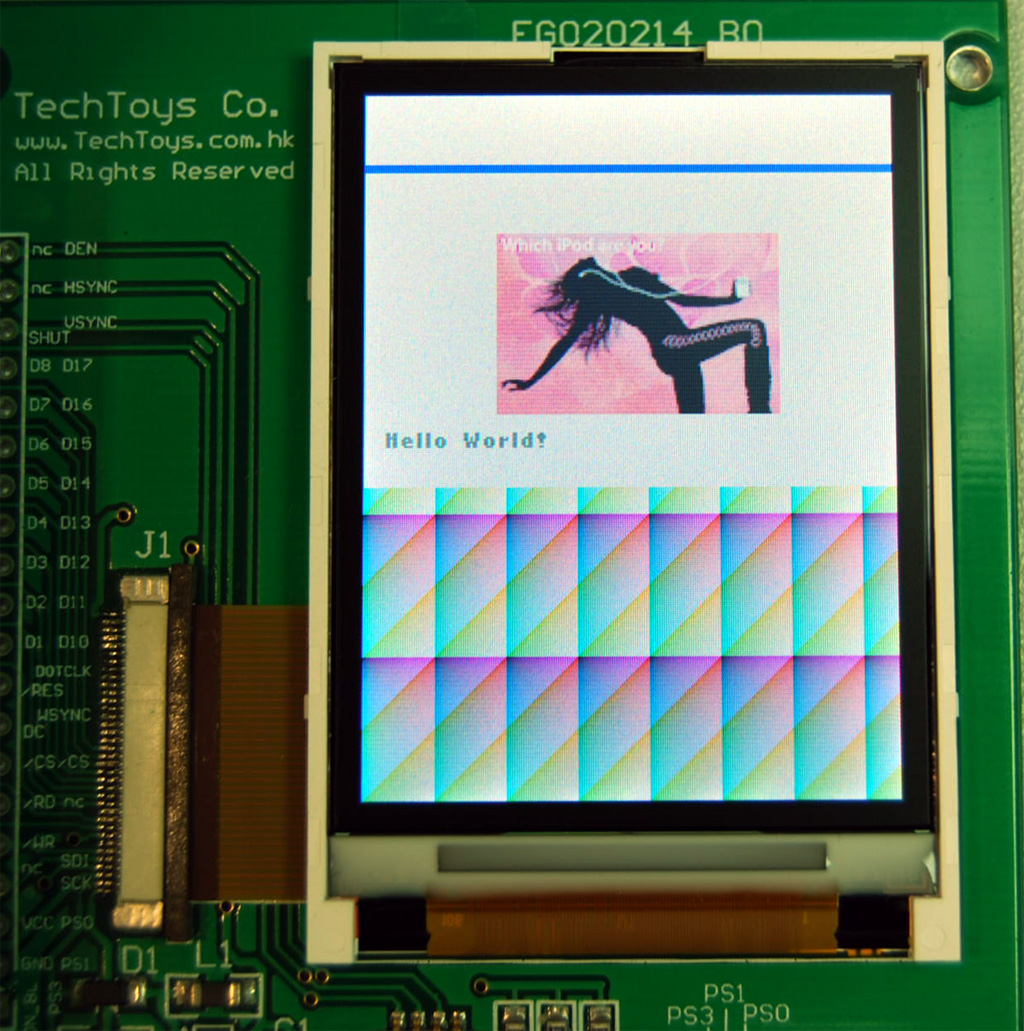

Demonstration for PIC18LF4550 v1.0c
517KB
Doc 07

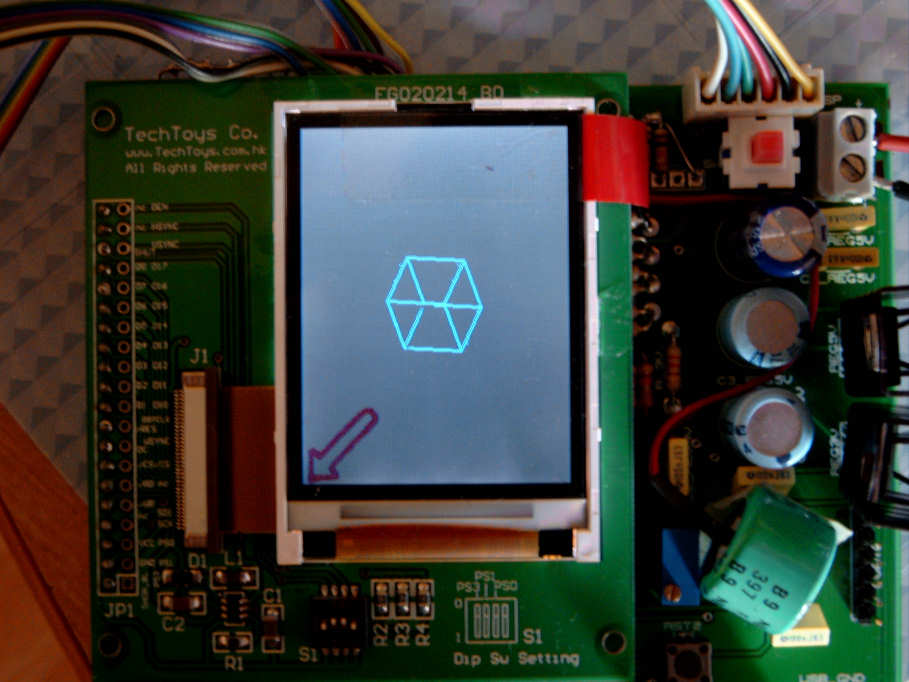

Rotating cube example by Fabrice Muller in CCS18 compiler
120KB
Doc 08

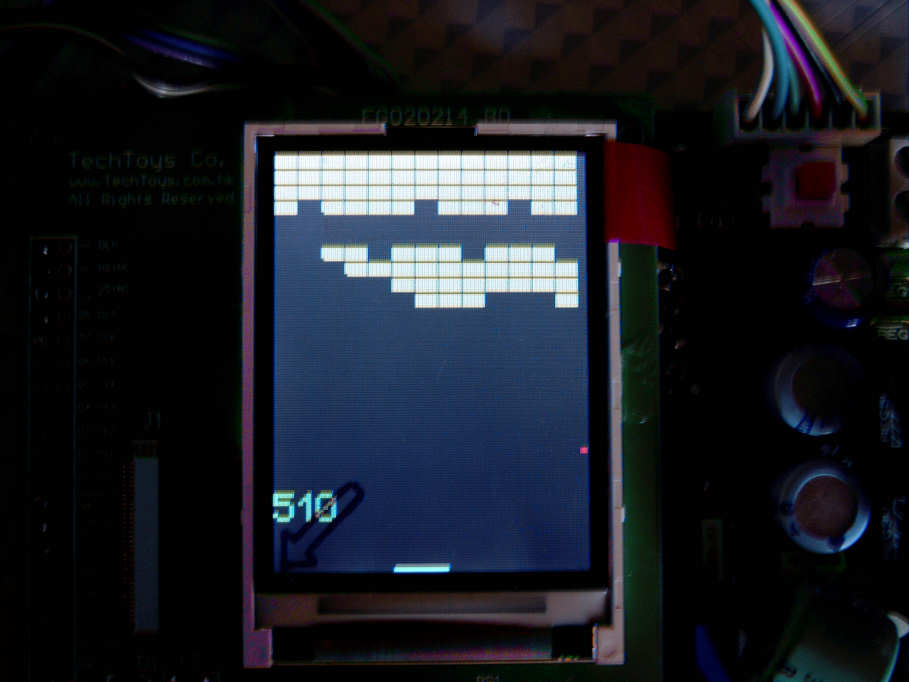

Breakout Game example by Fabrice Muller in CCS18 compiler
95KB
Doc 09

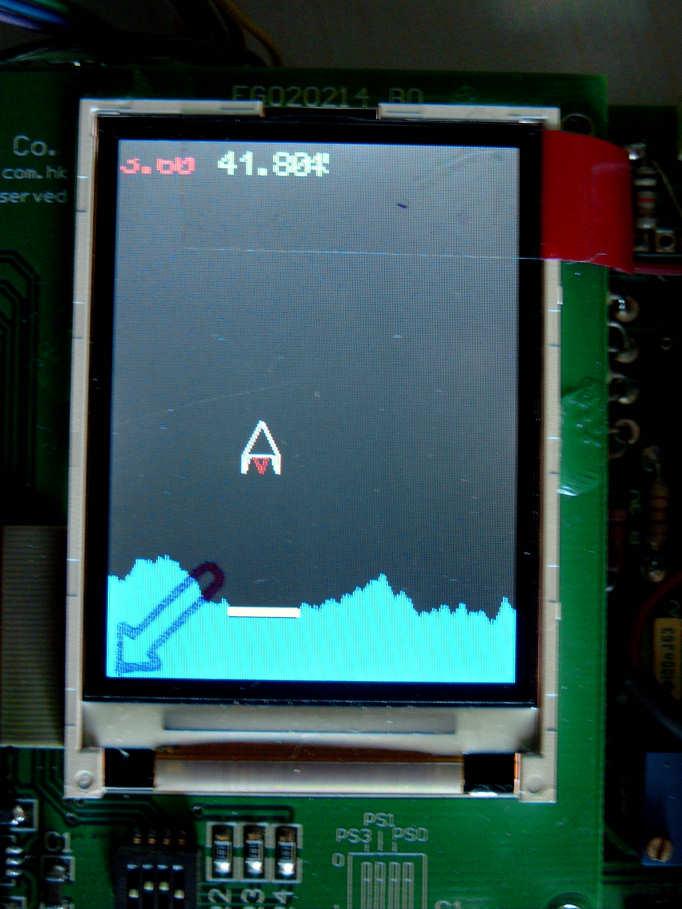

Lunar Lander by Fabrice Muller in CCS18
893KB
Doc 10
LT1932 constant current DC-DC converter
241KB
Doc 11
Example in C30 for PIC24FJ128GA010
7138KB
Doc 12

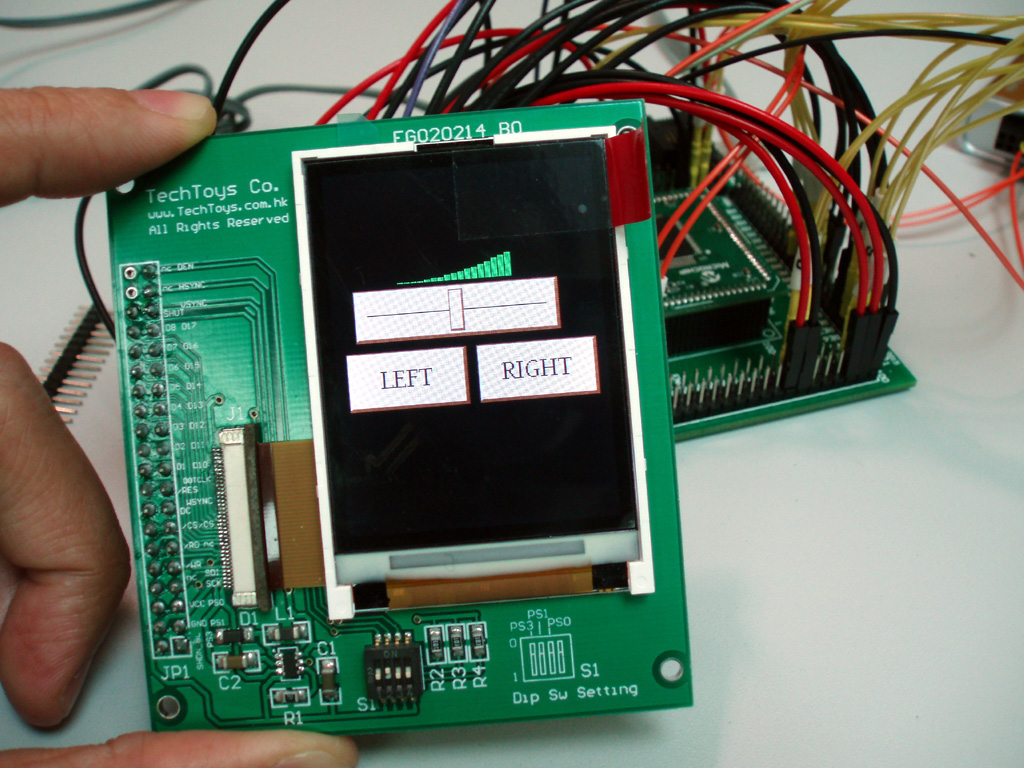

Display driver for Microchip GUI in 16-bit
298KB
Ordering
Item description
2.2" TFT LCD module on PCB with LT1932 LED driver
Part number
FG020214_BO
Price
HK$312.00 (US$40.00)
Item description
Bare LCD module w/o PCB
Part number
FG020214
Price
HK$234.00 (US$30.00)
Freight charge
US$7 for registered air parcel for all countries
Ordering method
email
us to order
