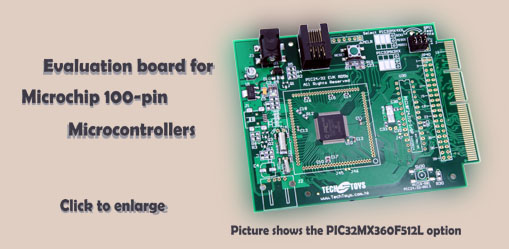

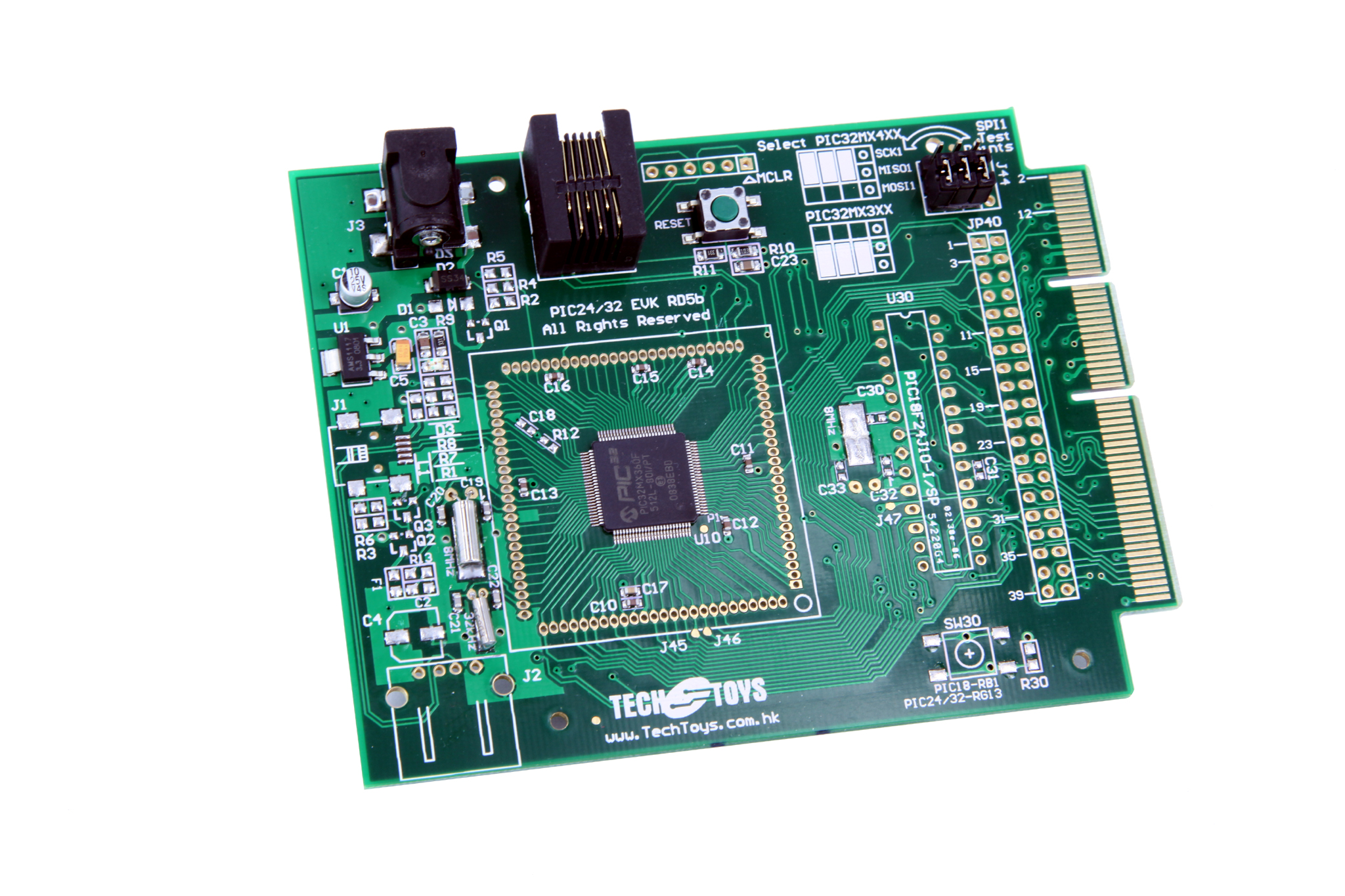

Evaluation Board for Microchip 100-Pin General Purpose MCU

Evaluation platform for Microchip 100-Pin General Purpose Microcontrollers
Microchip ICD2/3 compatible
PICkit 2/3 programmer compatible
Edge connector compatible with Samtec MEC1 connector for
SSD1963 EVK Ultima R4.1













Document & Software

Doc 01 Schematics

1,334 KB

























Ordering

Item description Evaluation board for Microchip 100-Pin General Purpose MCU

Order options PIC24/32 EVK RD5b - option PIC32MX360F512L onboard
  Part #: PIC32MX360F512L-EVK-RD5b
  Board temporarily out of stock


  PIC24/32 EVK RD5b - option PIC24FJ256GA110 onboard
  Part # : PIC24FJ256GA110-EVK-RD5b
  Board temporarily out of stock




  PIC24/32 EVK RD6 - option PIC32MX460F512L onboard
  Part #: PIC32MX USB EVK RD6
  Price : US$39.00


Freight charge US$6 for registered air parcel
  email us to order if you want to ship by EMS SpeedPost/DHL

Related items Solomon SSD1963 Evaluation Board Ultima R4.1
