Services
development, and engineering consultant services.
Hardware Prototyping:
No
matter it is through-hole or SMD components, no
matter it is only a single
piece, or
small volume production. Options
of a full drawing package
of hardware
layout, schematics, CAD files and
gerber files. Maybe it is just
a hand-
solder job, small-volume SMD
mounted PCB, or large-scaled
production, we would be able to help.

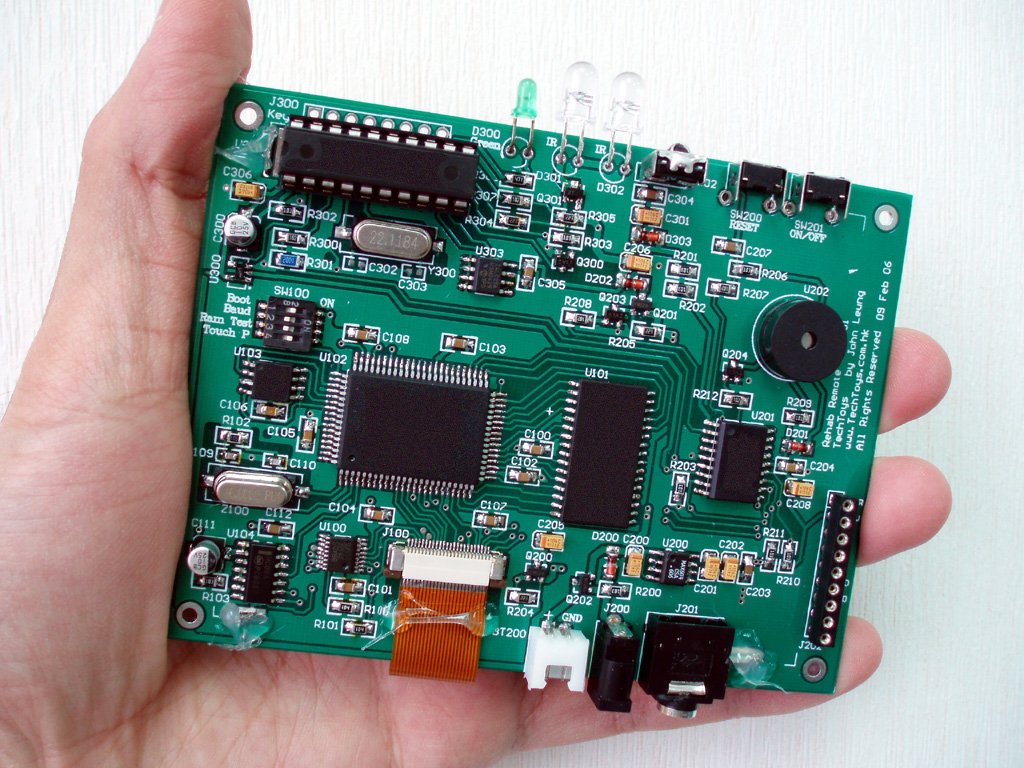

Picture on the right
shows one of our
job, double-sided 1.0mm PCB, with
mcu, 320x240 graphical
LCD display
ASIC, and infra-red sensing and
emitting circuit.
PCB
size: 102mm x 78mm
Components on
board: 91
Connections: 292
Tracks: 10910 tracks, manual routed
Firmware development:
Specialized in Microchip
PICxx & TI MSP430.
With full documentations including an abstract,
workflow, calling hierarchy and
commented source. All development in C

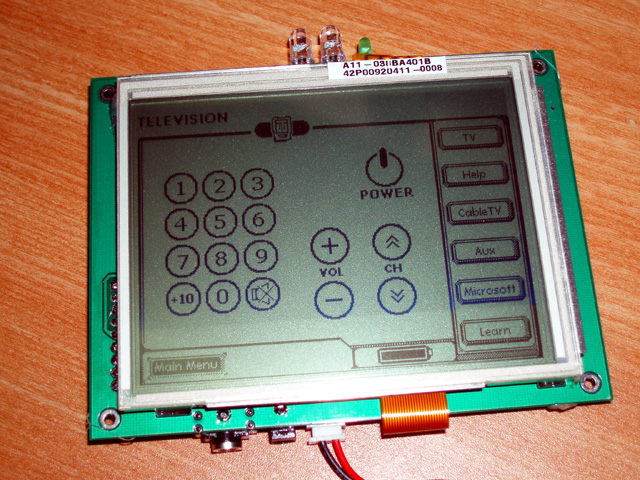

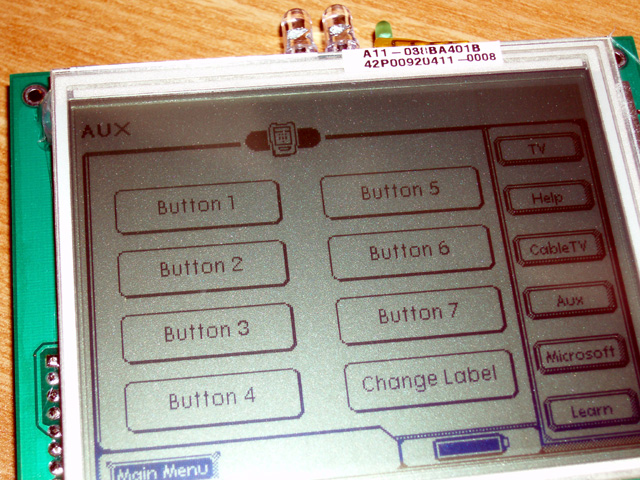

language for portability. Pictures below
show the frontal side of
the PCB above, with firmware developed for a learning
universal remote
control for severe physically-disabled persons.
