TI MSP430-417STK2

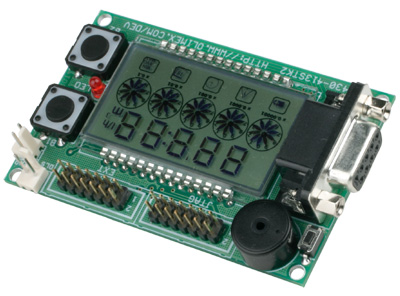

MSP430-417STK2 MPS430F417 STARTER-KIT DEVELOPMENT BOARD

 FEATURES:

• MCU: MSP430F417 with 32K Bytes Program Flash, 256 Bytes data Flash,1K Bytes RAM
• JTAG connector
• Custom LCD panel with 5 digits, 5 decimal counters, special signs
• RS232 connector
• RS232 interface circuit with Tx, Rx signals
• Dallas touch button port
• status LED
• two buttons
• Buzzer
• CR2032 li-battery holder 3V
• 32 768 Hz oscillator crystal
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply filtering capacitor
• extension headers for unused uC pins
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 80x50 mm (3.15x1.96")

• msp430-417stk2.pdf

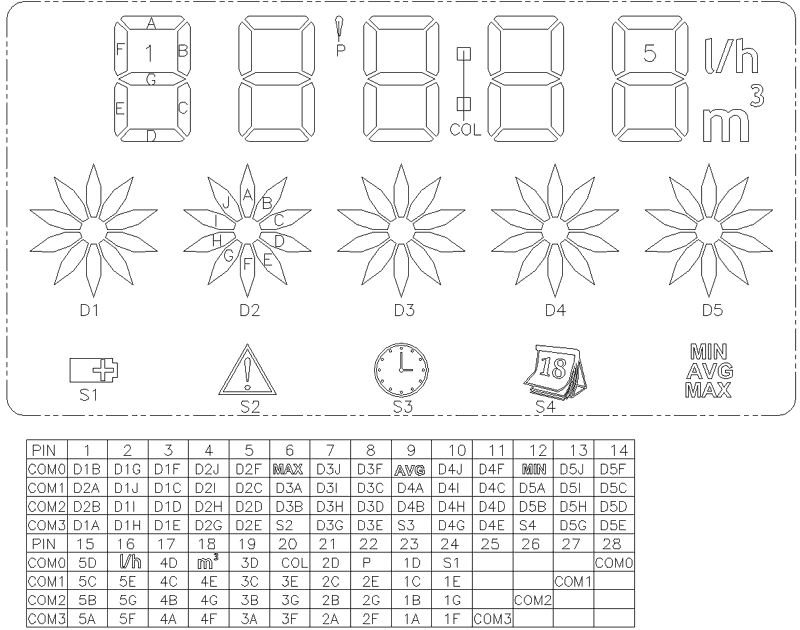

• LCD pinout

• msp430-417stk.asm test software for RS232 Tx/Rx, button scan, LED, buzzer, Dallas iButton check present
• DCO calibration subroutine, useful when you need to know at what frequency MSP430 is running
• Real Time Clock subroutine - software implementation
• I2C EEPROM subroutine - 24xx eeprom subroutines
• Uart subroutine - software implementation of serial communication 9600,1,8,N

 Place order here:
 MSP430-417STK2 : Assembled and tested, includes MSP430F417 microcontroller
 PRICE                 : US$49.00
