TI MSP430-1121STK2

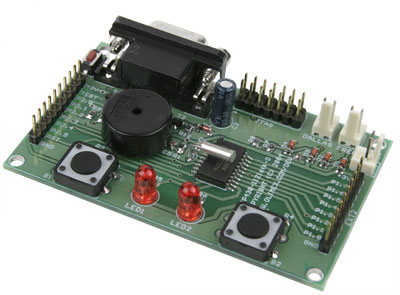

MSP430-1121STK2 MPS430F1121 STARTER-KIT DEVELOPMENT BOARD

 FEATURES:

• MCU: MSP430F1121A with 4K Bytes Program Flash, 256 Bytes data Flash, 256 Bytes RAM
• JTAG connector
• RS232 connector
• RS232 interface circuit with Tx, Rx signals
• Dallas touch button port
• Frequency input
• two red LEDs
• two user buttons
• RESET button
• Buzzer
• External 3V power supply connector
• 3V Lithium cell battery holder on back
• 32.768 kHz oscillator crystal
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply filtering capacitor
• extension headers for each uC pin
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 80x50 mm (3.15x1.96")

• msp430-1121A data sheet
• Schematic of this kit msp430-1121stk-b1.pdf
• How do I assemble the 1121stk test asm file? by Eric Engler

• msp430-1121stk.asm test software for RS232 Tx/Rx, button scan, LED, buzzer, Dallas iButton check present
• DCO calibration subroutine, useful when you need to know at what frequency MSP430 is running
• Real Time Clock subroutine - software implementation
• I2C EEPROM subroutine - 24xx eeprom subroutines
• Uart subroutine - software implementation of serial communication 9600,1,8,N
