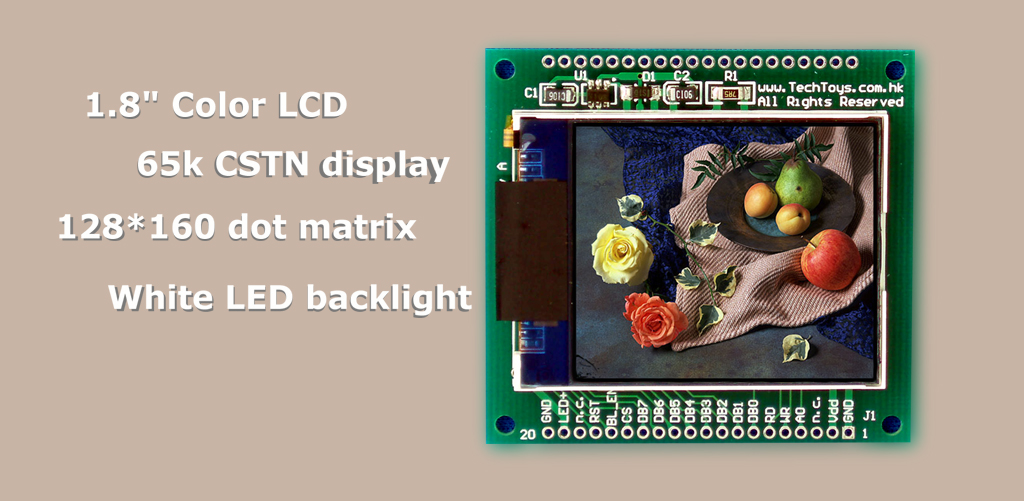

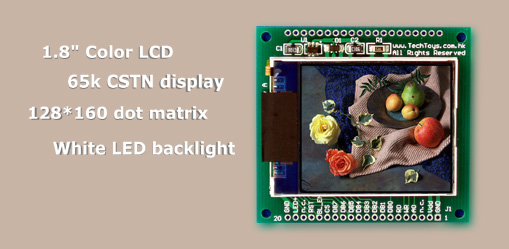

65k Color LCD module on PCB

1.8" low-power consumption 65k color LCD module for MP3, digital camera..
128*RGB*160 matrix
8-bit parallel mode for fast display
3.0-3.3V operating voltage
Built-in LCD-bias regulator eliminates an external bias circuit
LM2665 charge-pump for LED backlight with ON/OFF control direct from mcu
2.00mm pin easy for prototyping







Document & Software


Doc 01

Dimension

 13KB


Doc 02 Schematic (Rev B) 7KB
Doc 03 CM50010ACT6 data sheet 185KB
Doc 04 Reference design for 8051   link
Doc 05 Reference design for Microchip PIC   link
Doc 06 HDC1600 LCD controller 1.09MB
Doc 07 3D rotating cube example by Pyrofer   link
Doc 08 National LM2665 charge pump 241KB
Doc 09 Archive for Samsung controller 762KB


Ordering

Item description 1.8" 65k color LCD module on PCB with LM2665 charge pump (HDC1600 controller)
Part number CM50010ACT6_BO_HDC1600 (Rev B)
Price HK$180.00 (US$23.00)

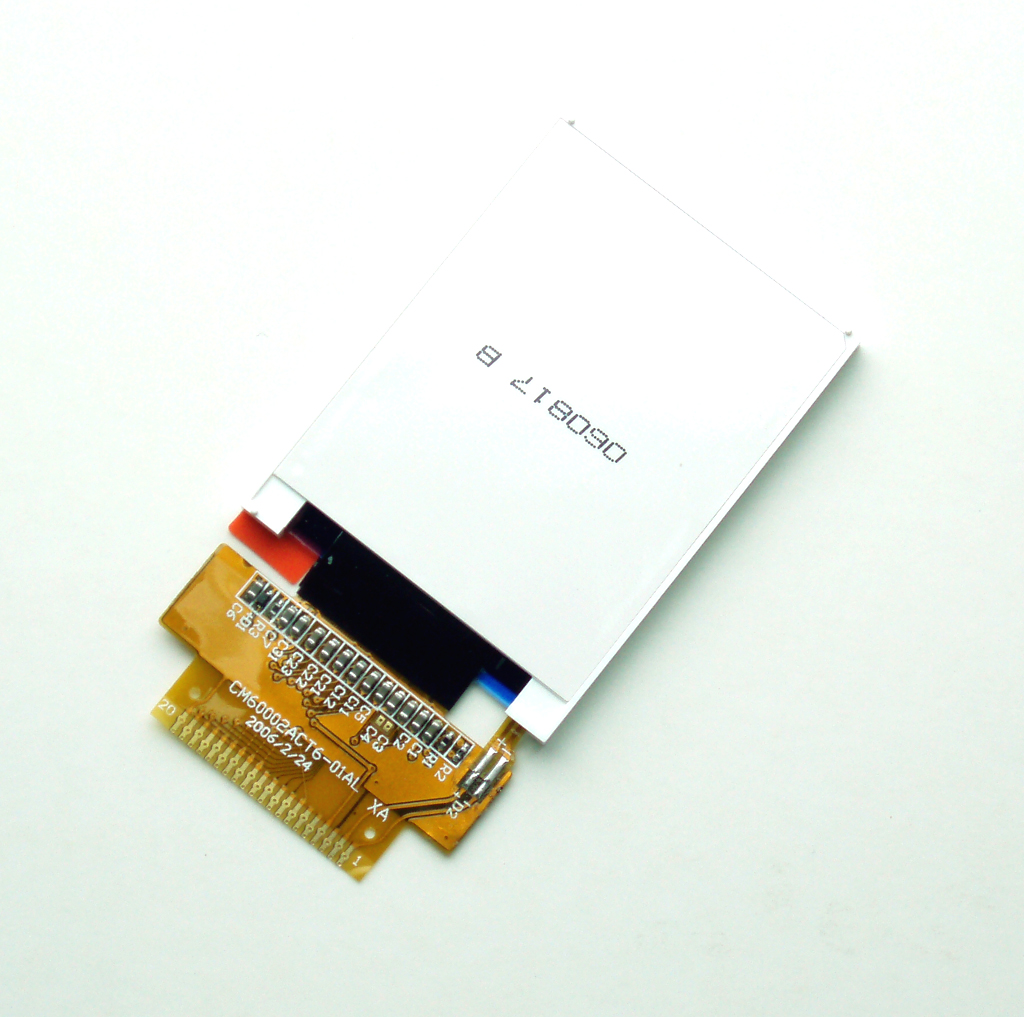

Item description Bare LCD module (front, back)
Part number CM50010ACT6_HDC1600
Price HK$108.00 (US$14.00)
Freight charge US$6 for registered air parcel
Ordering method email us to order
